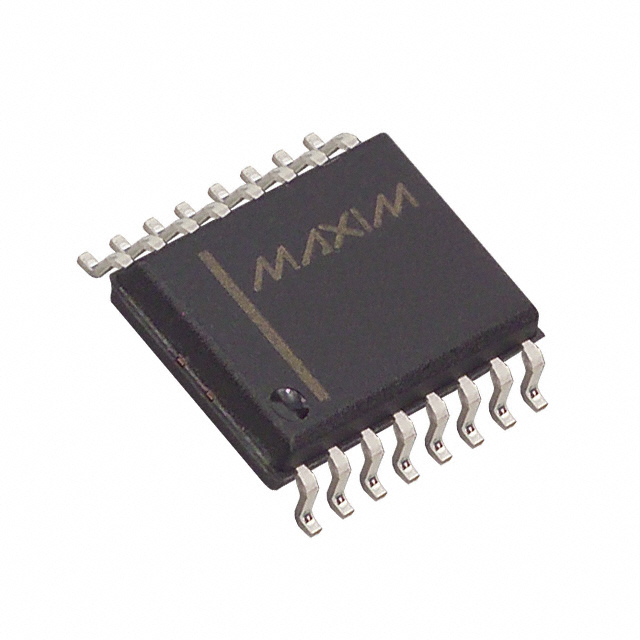

DS1013S-10+ Overview
With the 16-SOIC (0.295, 7.50mm Width) package, additional insulation hardware is no longer required. A reliable performance can be achieved with the supply voltage of 4.75V ~ 5.25V. As a mounting technique, Surface Mount has been used. This device has an operating temperature of 0°C ~ 70°C. A supplier device package is provided by 16-SOIC. It is part of the - series, which are some of the most important electronic devices.
DS1013S-10+ Features
Mounting Type: -

DS1013S-10+ Applications
There are a lot of Analog Devices
DS1013S-10+ Delay Lines Timing ICs applications.

Security Systems
Network Hubs, Bridges, and Routers
QDR/QDRII Memory Systems
Multiphase Clock Generation
LCD Televisions
Telecommunications
Digital Test Equipment
Digital Video Projection
Signal Generators and Analyzers
Clock De-Skewing

Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Supplier Device Package	16-SOIC
Package	Tube
Base Product Number	DS1013
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Operating Temperature	0°C ~ 70°C
Series	-
Voltage - Supply	4.75V ~ 5.25V
Function	Multiple, NonProgrammable
Number of Independent Delays	3
Delay to 1st Tap	10ns
Available Total Delays	10ns
