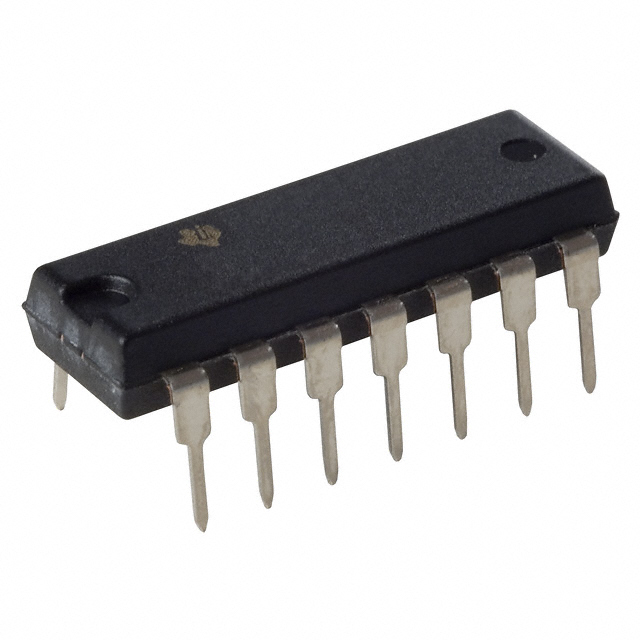

| Package / Case | 14-CDIP (0.300, 7.62mm) |
| Surface Mount | NO |
| Number of Pins | 14 |
| Packaging | Tube |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 14 |
| ECCN Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Terminal Position | DUAL |
| Terminal Form | THROUGH-HOLE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Supply Voltage | 15V |
| Terminal Pitch | 2.54mm |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Base Part Number | 4214 |
| Function | Analog Multiplier/Divider |
| Qualification Status | Not Qualified |
| Operating Temperature (Max) | 85°C |
| Operating Temperature (Min) | -25°C |
| Supply Voltage-Max (Vsup) | 20V |
| Power Supplies | +-15V |
| Temperature Grade | OTHER |
| Supply Voltage-Min (Vsup) | 8.5V |
| Analog IC - Other Type | ANALOG MULTIPLIER OR DIVIDER |
| Nominal Supply Current | 5.5mA |
| Bandwidth | 10MHz |
| Neg Supply Voltage-Nom (Vsup) | -15V |
| Neg Supply Voltage-Max (Vsup) | -20V |
| Neg Supply Voltage-Min (Vsup) | -8.5V |
| Number of Bits/Stages | 4-Quadrant |
| Length | 18.545mm |
| Height Seated (Max) | 4.45mm |
| Width | 7.62mm |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Terminal Finish | NOT SPECIFIED |
| JESD-30 Code | R-CDIP-T14 |
| Qualification Status | COMMERCIAL |
| Supplier Device Package | 14-CDIP |
| Package | Tube |
| Mfr | Burr Brown |
| Product Status | Obsolete |
| Series | - |
