| Lifecycle Status | NRND (Last Updated: 4 days ago) |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209, 5.30mm Width) |
| Number of Pins | 28 |
| Weight | 285.791543mg |
| Operating Temperature | -25°C~85°C TA |
| Packaging | Tube |
| Series | SoundPlus™ |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Not For New Designs |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 28 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Applications | Consumer Audio, Professional Audio |
| Max Power Dissipation | 300mW |
| Voltage - Supply | 4.5V~5.5V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 5V |
| Terminal Pitch | 0.65mm |
| Base Part Number | DF1704 |
| Function | Interpolation Filter |
| Operating Supply Voltage | 5.5V |
| Power Supplies | 5V |
| Number of Channels | 2 |
| Interface | I2S |
| Nominal Supply Current | 20mA |
| uPs/uCs/Peripheral ICs Type | DSP PERIPHERAL, DIGITAL FILTER |
| Number of Bits | 24 |
| Resolution | 3 B |
| Sampling Rate | 96 ksps |
| Specifications | 32kHz ~ 96kHz |
| Boundary Scan | NO |
| Low Power Mode | NO |
| Conversion Rate | 96 ksps |
| Height | 2mm |
| Length | 10.2mm |
| Width | 5.3mm |
| Thickness | 1.95mm |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Mfr | Texas Instruments |
| Product Status | Not For New Designs |
| Interface | I²S |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |

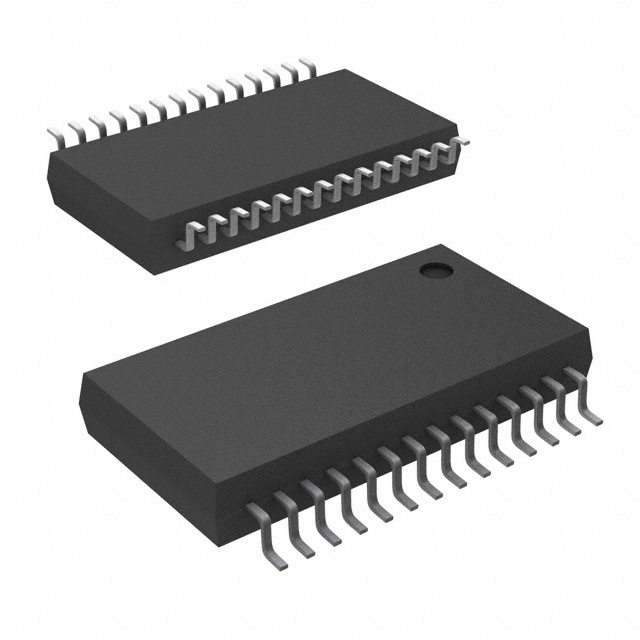

DF1704E Datasheet
