Add to cart |
| Manufacturer | STMicroelectronics |
| Product Category | AC DC Converters, Offline Switchers |
| Series | L6699 |
| Type | High Voltage Controllers |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.007079 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | - 25 C to + 125 C |

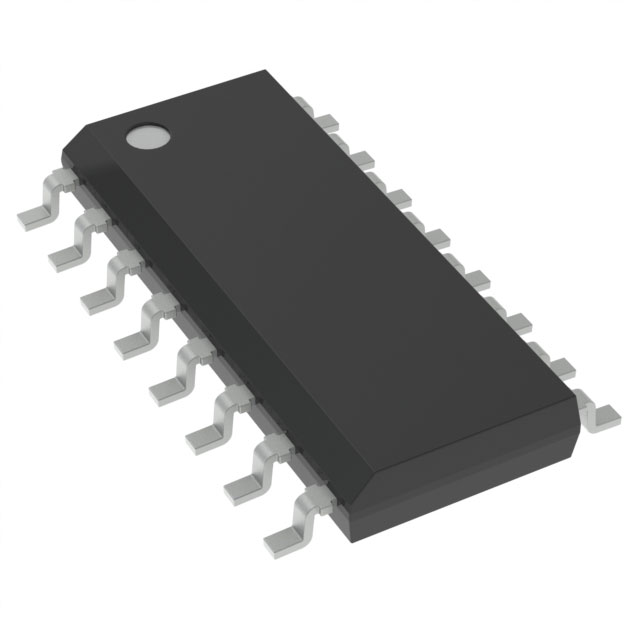

| Package-Case | 16-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 16-SO |
| Watt | - |
| Number-of-Outputs | 1 Output |
| Output-Isolation | Isolated |
| Internal-Switch-s | No |
| Voltage-Breakdown | - |
| Topology | Half-Bridge |
| Voltage-Start-Up | 10.7V |
| Voltage-Supply-Vcc-Vdd | 8.85 V ~ 16 V |
| Duty-Cycle | 50% |
| Frequency-Switching | 60kHz ~ 235kHz |
| Fault-Protection | Current Limiting |
| Control-Features | Soft Start |
| Output-Voltage | 13.3 V |
| Operating-Supply-Current | 3 mA |
| Output-Current | 800 mA |
| Switching-Frequency | 235 kHz |
| Package-Case | SO-16 |
| Duty-Cycle-Max | 50 % |
| Input-Supply-Voltage-Min | 16 V |
| Input-Supply-Voltage-Max | 8.85 V |
L6699D Datasheet
