| Mounting Type | Surface Mount |

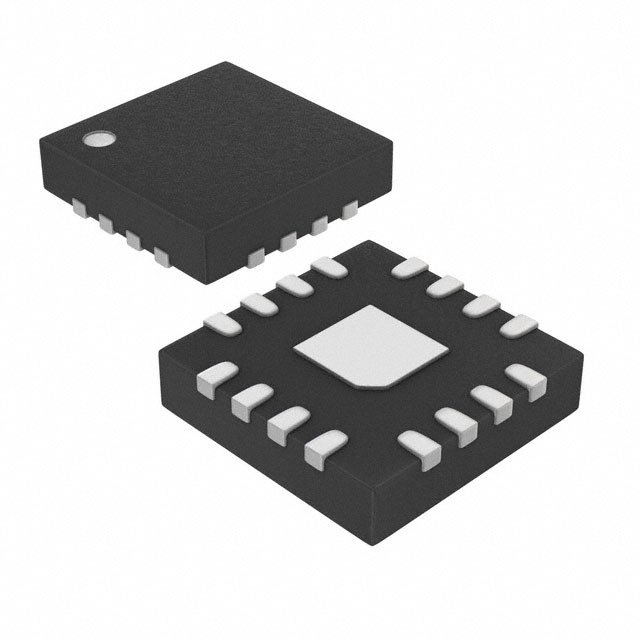

| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
| Mounting Style | SMD/SMT |
| Package | Tube |
| Base Product Number | MAX5982 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Product Status | Active |
| Maximum Operating Temperature | + 85 C |
| Supply Voltage - Max | 60 V |
| Minimum Operating Temperature | - 40 C |
| Supply Voltage - Min | 30 V |
| Current Limit | 1.7 A to 2.1 A |
| Power Fail Detection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Series | - |
| Type | Controller (PD) |
| Voltage - Supply | 36.6V ~ 60V |
| Number of Channels | 1 |
| Operating Supply Current | 250 uA |
| Power - Max | 70 W |
| Current - Supply | 250µA |
| Internal Switch(s) | Yes |
| Standards | 802.3at (PoE+), 802.3af (PoE) |
| Product | PoE / LAN Solutions |
| Auxiliary Sense | Yes |
| Factory Lead Time | 6 Weeks |
| Mount | Surface Mount |
| Number of Pins | 16 |
| Operating Temperature | -40°C~85°C |
| Packaging | Tube |
| Published | 2012 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 16 |
| ECCN Code | EAR99 |
| Additional Feature | RESET THRESHOLD VOLTAGE IS 3.8V |
| Max Power Dissipation | 2.286W |
| Voltage - Supply | 36.6V~60V |
| Terminal Position | QUAD |
| Terminal Form | NO LEAD |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Number of Functions | 1 |
| Supply Voltage | 48V |
| Terminal Pitch | 0.8mm |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Base Part Number | MAX5982 |
| Pin Count | 16 |
| Qualification Status | Not Qualified |
| Supply Voltage-Max (Vsup) | 60V |
| Power Supplies | 48V |
| Operating Supply Current | 250μA |
| Adjustable Threshold | NO |
| Power - Max | 70W |
| Data Bus Width | 32b |
| Supply Current-Max (Isup) | 0.55mA |
| Length | 5mm |
| Height Seated (Max) | 0.8mm |
| RoHS Status | ROHS3 Compliant |
