| Mounting Type | Surface Mount |

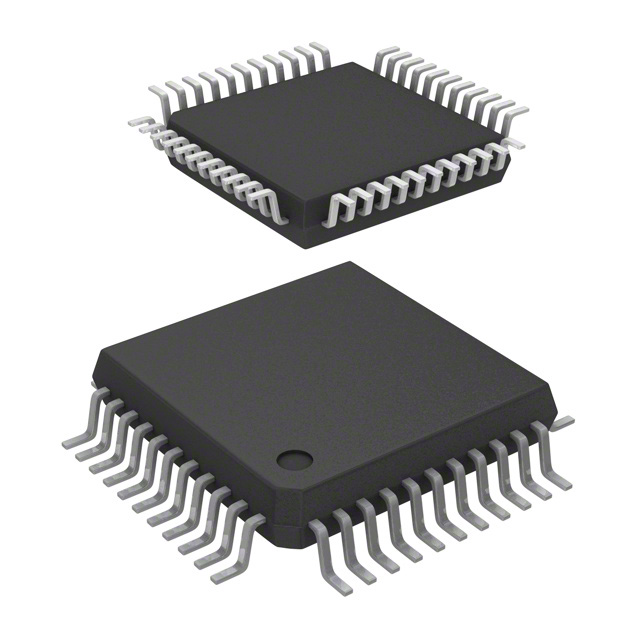

| Package / Case | 44-LQFP |
| Surface Mount | YES |
| Number of Pins | 44 |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tray |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 44 |
| ECCN Code | EAR99 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Applications | Automotive Audio, Consumer Audio |
| Voltage - Supply | 7V~10.2V |
| Terminal Position | QUAD |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Terminal Pitch | 0.8mm |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Base Part Number | TDA7430 |
| Function | Audio Tone Processor |
| Power Supplies | 9V |
| Supply Voltage-Min (Vsup) | 7V |
| Number of Channels | 2 |
| Interface | I2C |
| Nominal Supply Current | 26mA |
| Specifications | 0.5dB |
| Consumer IC Type | TONE CONTROL CIRCUIT |
| Number of Bands | 3 |
| Harmonic Distortion | 0.01% |
| Channel Separation | 90 dB |
| Length | 10mm |
| Height Seated (Max) | 1.6mm |
| Width | 10mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Mfr | STMicroelectronics |
| Series | - |
| Product Status | Obsolete |
| Applications | Audio |
| Interface | I²C |
| Voltage - Supply | 7V ~ 10.2V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | Automotive |
| Supplier Device Package | 44-TQFP (10x10) |
