UC2842ADTR
UC2842ADTR

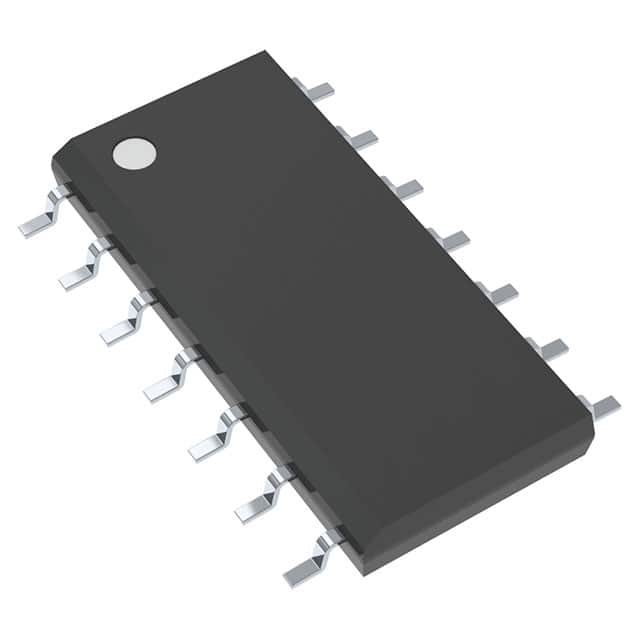

The picture is for reference only, please refer to the product specification
UC2842ADTR
    Part Number：KY-UC2842ADTR
    Mfr. Part No：UC2842ADTR
    Mfr.：Texas Instruments
    Package：14-SOIC(0.154",3.90mmWidth)
    Stock：8296
    Description：Converter Offline Switch Frequency Control Up to 500kHz -40°C ~ 85°C (TA) Tape & Reel (TR) Alternate Packaging 14-SOIC Boost, Buck, Flyback, Forward 10 V ~ 30 V
    Lead Free / RoHS Status：Lead free / RoHS Compliant
    Standard lead time：3(168Hours)
    Data Sheet：UC2842ADTR Datasheet
Add to cart
In Stock: 8296
    －+
  • *
  • Please send your requirements to E-mail：sales@kywos.com,we will reply you as soon as possible
    • Inquiry
  • Products Details
    • ManufacturerTexas Instruments
    Product CategoryAC DC Converters, Offline Switchers
    SeriesUC2842A
    PackagingTape & Reel (TR) Alternate Packaging
    Unit-Weight0.004318 oz
    Mounting-StyleSMD/SMT
    Package-Case14-SOIC (0.154", 3.90mm Width)
    Operating-Temperature-40°C ~ 85°C (TA)
    Mounting-TypeSurface Mount
    Supplier-Device-Package14-SOIC
    Watt-
    Number-of-Outputs1 Output
    Output-IsolationIsolated
    Internal-Switch-sNo
    Voltage-Breakdown-
    TopologyBoost, Buck, Flyback, Forward
    Voltage-Start-Up16V
    Voltage-Supply-Vcc-Vdd10 V ~ 30 V
    Duty-Cycle96%
    Frequency-SwitchingUp to 500kHz
    Fault-ProtectionCurrent Limiting
    Control-FeaturesFrequency Control
    Maximum Operating Temperature+ 85 C
    Operating temperature range- 40 C
    Output-Current1000 mA
    Switching-Frequency450 kHz
    Fall-Time50 ns
    Rise-Time50 ns
    Package-CaseSOIC-14
    Duty-Cycle-Max100 %
