| Manufacturer | Microchip Technology |
| Product Category | AC DC Converters, Offline Switchers |
| Series | - |
| Product | Current Mode Controllers |
| Type | Current Mode PWM Controllers |
| Packaging | Tube |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | - 40 C to + 85 C |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-SOIC |
| Watt | - |
| Number-of-Outputs | 1 Output |
| Output-Isolation | Isolated |
| Internal-Switch-s | No |
| Voltage-Breakdown | - |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage-Start-Up | 16V |
| Voltage-Supply-Vcc-Vdd | 10 V ~ 30 V |
| Duty-Cycle | 48% |
| Frequency-Switching | 500kHz |
| Fault-Protection | Current Limiting |
| Control-Features | Frequency Control |
| Isolation | Isolated |
| Output-Power | 25 W |
| Maximum Operating Temperature | + 85 C |
| Output-Voltage | 5 V |
| Operating-Supply-Current | 11 mA |
| Output-Current | 1 A |
| Switching-Frequency | 40 kHz |
| Package-Case | SOIC-8 |
| Duty-Cycle-Max | 50 % |
| Input-Supply-Voltage-Min | 10 V |
| Input-Supply-Voltage-Max | 30 V |

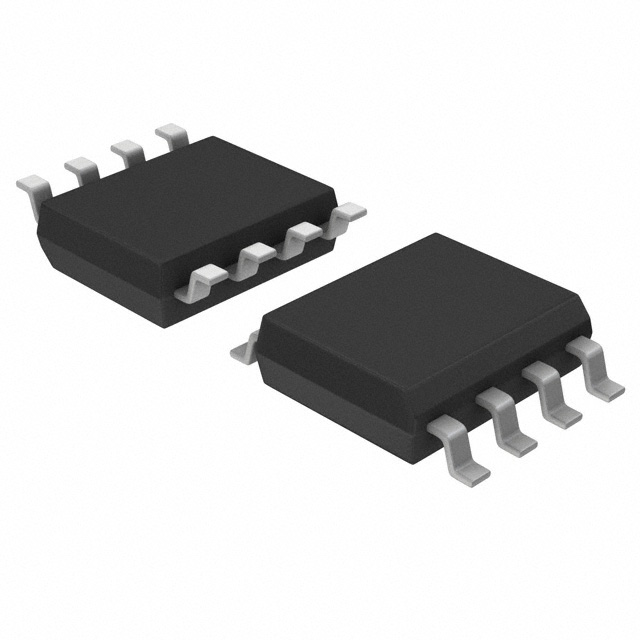

UC2844ADM Datasheet
