UC3842ANG4
UC3842ANG4

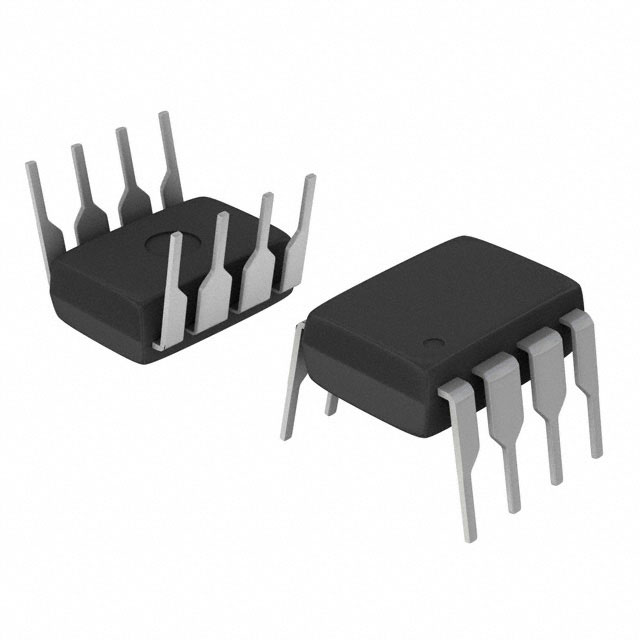

The picture is for reference only, please refer to the product specification
UC3842ANG4
    Part Number：KY-UC3842ANG4
    Mfr. Part No：UC3842ANG4
    Mfr.：Texas Instruments
    Package：8-DIP(0.300",7.62mm)
    Stock：178093
    Description：Converter Offline Switch Frequency Control Up to 500kHz 0°C ~ 70°C (TA) Tube 8-PDIP Boost, Buck, Flyback, Forward 10 V ~ 30 V
    Lead Free / RoHS Status：Lead free / RoHS Compliant
    Standard lead time：3(168Hours)
    Data Sheet：UC3842ANG4 Datasheet
Add to cart
In Stock: 178093
    －+
  • *
  • Please send your requirements to E-mail：sales@kywos.com,we will reply you as soon as possible
    • Inquiry
  • Products Details
    • ManufacturerTexas Instruments
    Product CategoryAC DC Converters, Offline Switchers
    SeriesUC3842A
    PackagingTube
    Unit-Weight0.018646 oz
    Mounting-StyleThrough Hole
    Package-Case8-DIP (0.300", 7.62mm)
    Operating-Temperature0°C ~ 70°C (TA)
    Mounting-TypeThrough Hole
    Supplier-Device-Package8-PDIP
    Watt-
    Number-of-Outputs1 Output
    Output-IsolationIsolated
    Internal-Switch-sNo
    Voltage-Breakdown-
    TopologyBoost, Buck, Flyback, Forward
    Voltage-Start-Up16V
    Voltage-Supply-Vcc-Vdd10 V ~ 30 V
    Duty-Cycle96%
    Frequency-SwitchingUp to 500kHz
    Fault-ProtectionCurrent Limiting
    Control-FeaturesFrequency Control
    Maximum Operating Temperature+ 70 C
    Operating temperature range0 C
    Output-Current1000 mA
    Switching-Frequency450 kHz
    Fall-Time50 ns
    Rise-Time50 ns
    Package-CasePDIP-8
    Duty-Cycle-Max100 %
