VIPER06HS

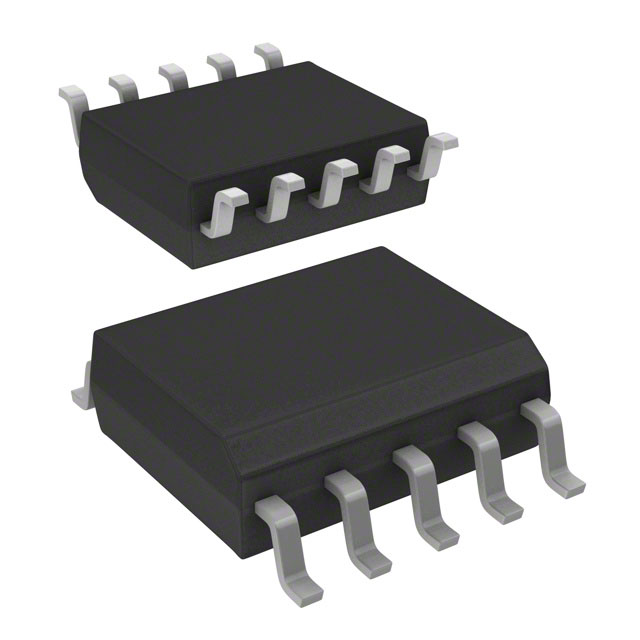

The picture is for reference only, please refer to the product specification

VIPER06HS

Part Number：KY-VIPER06HS

Mfr. Part No：VIPER06HS

Mfr.：

Stock：6159

Description：IC OFFLINE SWITCH PWM 10-SSOP

Lead Free / RoHS Status：Lead free / RoHS Compliant

Standard lead time：3(168Hours)

Data Sheet：

Add to cart

Products Details

Manufacturer
Product Category	AC DC Converters, Offline Switchers
Series	VIPer™ plus
Type	Fixed Frequency Converter
Packaging	Tube
Mounting-Style	SMD/SMT
Operating-Temperature-Range	- 40 C to + 150 C
Package-Case	10-SOP (0.154", 3.90mm Width)
Operating-Temperature	-40°C ~ 150°C (TJ)
Mounting-Type	Surface Mount
Supplier-Device-Package	10-SSO
Watt	8W
Number-of-Outputs	1 Output
Output-Isolation	Either
Internal-Switch-s	Yes
Voltage-Breakdown	800V
Topology	Buck, Flyback
Voltage-Start-Up	13V
Voltage-Supply-Vcc-Vdd	11.5 V ~ 23.5 V
Duty-Cycle	70%
Frequency-Switching	115kHz
Fault-Protection	Current Limiting, Open Loop, Over Temperature
Control-Features	-
Output-Power	8 W
Maximum Operating Temperature	+ 150 C
Operating-Supply-Current	20 mA
Switching-Frequency	115 kHz
Package-Case	SSO-10
Duty-Cycle-Max	80 %
Input-Supply-Voltage-Min	11.5 V
Input-Supply-Voltage-Max	23.5 V
