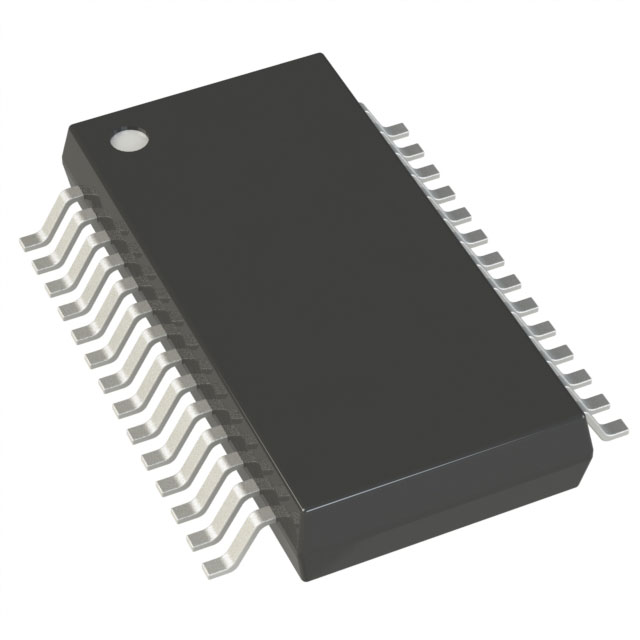

AD1896AYRSZRL Overview
It comes in a case with Tape & Reel (TR). It recommended mounting type is Surface Mount. It is embedded in 28-SSOP (0.209, 5.30mm Width) case. The device is with 2 channels. This part includes Sample Rate Converter functions for your reference. The device can be applied in Digital Audio Interfacing. It is supplied votage within 3.3V 5V. This device operates temperature at the range of -40°C~105°C TA. The number of terminations on the chip is 28. Similar parts can be found by searching for the AD1896 family. Please refer to the related specifications of the device : 6kHz ~ 215kHz. There are 28 pins accessible on the chip. CONSUMER CIRCUIT can be used to sort the part's consumer IC type. The minimum supply voltage (Vsup) for this part should not be less than 3.135V. It can give voltage at 3.33.3/5V volts. The maximal supply voltage (Vsup) reaches 3.465V. It is mounted by Surface Mount. The chip conducts in a supply voltage of 3.3V. It operates with a supply current of 43mA. The total number of IC chip bits is 24.
AD1896AYRSZRL Features
With 28-SSOP (0.209, 5.30mm Width) channels
operate temperature at the range of -40°C~105°C TA
consumer IC type: CONSUMER CIRCUIT
operate supply current at 43mA
with 24 bits

AD1896AYRSZRL Applications
There are a lot of Analog Devices Inc.
AD1896AYRSZRL Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Number of Pins	28
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Applications	Digital Audio Interfacing
Voltage - Supply	3.3V 5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	AD1896
Function	Sample Rate Converter
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.465V
Power Supplies	3.33.3/5V
Supply Voltage-Min (Vsup)	3.135V
Number of Channels	2
Interface	I2S, TDM
Operating Supply Current	43mA
Nominal Supply Current	43mA
Number of Bits	24
Resolution	3 B
Specifications	6kHz ~ 215kHz
Consumer IC Type	CONSUMER CIRCUIT
Width	5.3mm
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead
Mfr	Analog Devices Inc.
Series	-
Product Status	Active
Interface	I²S, TDM
Voltage - Supply	3.3V, 5V
Operating Temperature	-40°C ~ 105°C (TA)
Package / Case	28-SSOP (0.209", 5.30mm Width)
Supplier Device Package	28-SSOP
