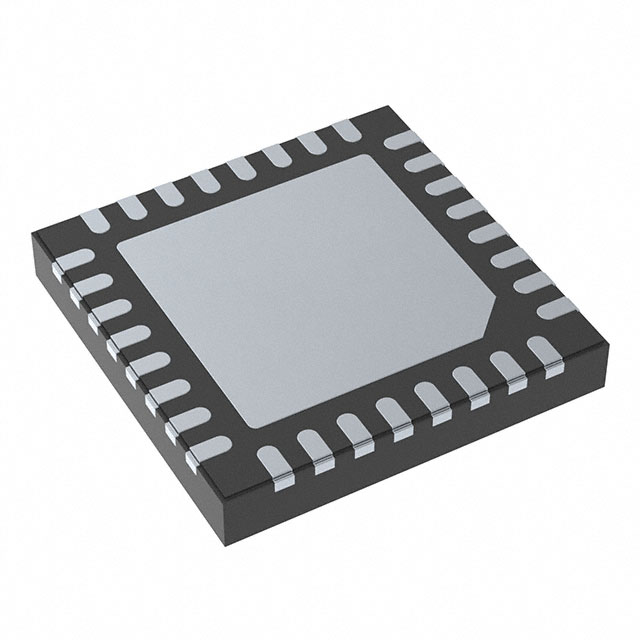

AD2428WCCSZ-RL OverviewWith Tape & Reel (TR), it comes in a case. In 32-WFQFN Exposed Pad, CSP case, it is embedded. With 1 channels, the device is equipped. You can refer to Audio Transceiver functions in this part. Automotive Audio is one of the possible applications of the device. Votage within 3V~3.63V is supplied. The device operates at a temperature in the range -40°C~105°C. On the chip, there are 32 terminations. Automotive-series components are used in this electrical component. 1.9V is the maximum supply voltage it can handle.
AD2428WCCSZ-RL FeaturesWith 32-WFQFN Exposed Pad, CSP channels
operate temperature at the range of -40°C~105°C
Supply voltage at 1.9V volts
AD2428WCCSZ-RL ApplicationsThere are a lot of Analog Devices Inc.
AD2428WCCSZ-RL Audio Special Purpose applications.
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
| Factory Lead Time | 16 Weeks |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Surface Mount | YES |
| Operating Temperature | -40°C~105°C |
| Packaging | Tape & Reel (TR) |
| Series | Automotive |
| Pbfree Code | no |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 32 |
| Applications | Automotive Audio |
| Voltage - Supply | 3V~3.63V |
| Terminal Position | QUAD |
| Terminal Form | NO LEAD |
| Supply Voltage | 1.9V |
| Terminal Pitch | 0.5mm |
| JESD-30 Code | S-XQCC-N32 |
| Function | Audio Transceiver |
| Number of Channels | 1 |
| Interface | I2C, I2S |
| Output Characteristics | OPEN-DRAIN |
| Differential Output | YES |
| Input Characteristics | STANDARD |
| Driver Number of Bits | 1 |
| Receiver Number of Bits | 1 |
| Length | 5mm |
| Height Seated (Max) | 0.8mm |
| Width | 5mm |
| RoHS Status | ROHS3 Compliant |
| Mfr | Analog Devices Inc. |
| Series | - |
| Product Status | Active |
| Applications | Audio |
| Interface | I²C, I²S |
| Voltage - Supply | 3V ~ 3.63V |
| Operating Temperature | -40°C ~ 105°C |
| Specifications | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Grade | Automotive |
| Supplier Device Package | 32-LFCSP-SS (5x5) |
AD2428WCCSZ-RL Datasheet
