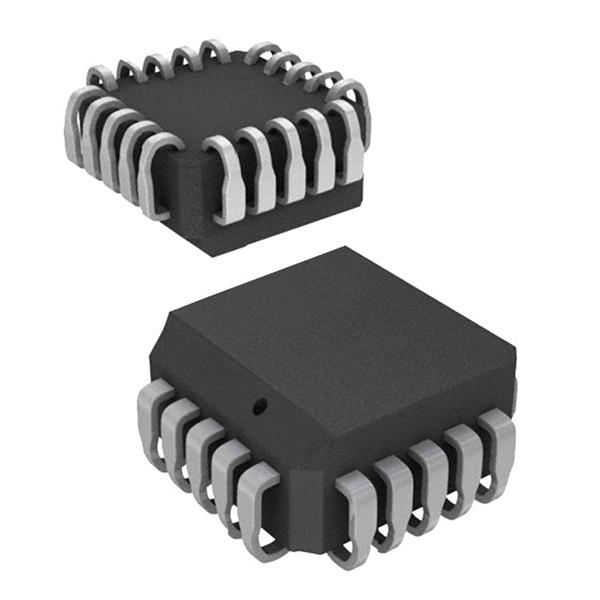

AD7512DIJPZ Overview20-LCC (J-Lead) contains it. Featuring copper construction, this electrical component belongs to the - series. A device like this can be used to generate the number OVERVOLTAGE PROTECTION as well. As of right now, there are 1 channels available. I have a 20 pin count on it, and it has a 20 pin count on it.
AD7512DIJPZ FeaturesAD7512DIJPZ ApplicationsThere are a lot of AnalogDevices
AD7512DIJPZ Controllers Interface ICs applications.
LAN Servers
PC Motherboards
0 to 10V Dimming Luminaires
Dimmable LED Power Supply
Dimming Control Devices
Commercial LED Lighting
Smart LED Lighting
Portable Appliances
Battery-Operated Devices
Cellular Data Devices
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Surface Mount | YES |
| Supplier Device Package | 20-PLCC (9x9) |
| Number of Terminals | 20 |
| Package | Tube |
| Base Product Number | AD7512 |
| Mfr | Analog Devices Inc. |
| Product Status | Obsolete |
| Package Shape | SQUARE |
| Manufacturer | Rochester Electronics LLC |
| Series | - |
| JESD-609 Code | e3 |
| Pbfree Code | Yes |
| Terminal Finish | MATTE TIN |
| Additional Feature | OVERVOLTAGE PROTECTION |
| Technology | CMOS |
| Terminal Position | QUAD |
| Terminal Form | J BEND |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 2 |
| Terminal Pitch | 1.27 mm |
| Reach Compliance Code | unknown |
| Pin Count | 20 |
| JESD-30 Code | S-PQCC-J20 |
| Qualification Status | COMMERCIAL |
| Temperature Grade | COMMERCIAL |
| Number of Channels | 1 |
| Analog IC - Other Type | SPDT |
| Seated Height-Max | 4.57 mm |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| On-state Resistance Match-Nom | 1 Ω |
| Width | 8.9662 mm |
| Length | 8.9662 mm |
