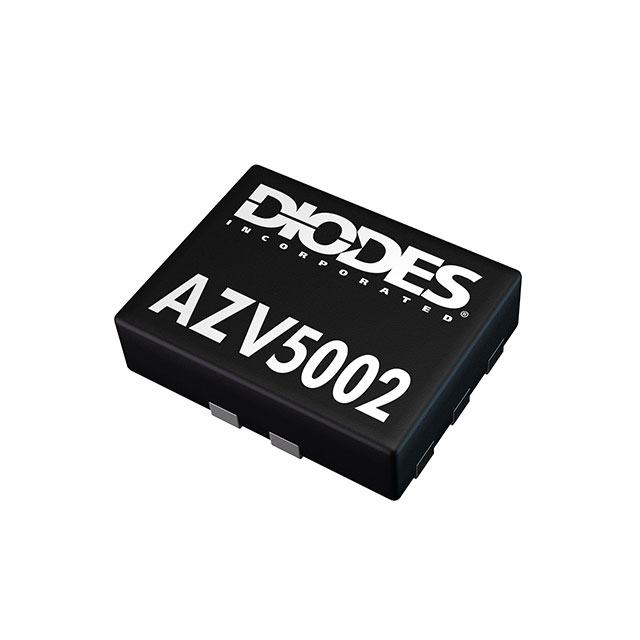

AZV5002DS-7 Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 10-UFQFN case. This device has a 1 channel configuration. To assist you, this part includes Detection Switch functions. It is possible to apply the device in the Consumer Audio axis. Votage will be supplied within the period of 1.6V~5V. In terms of temperature, this device works within a range of -40°C~85°C TA. The chip has 10 terminations. On the chip, there are 10 pins that can be accessed. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. In this case, Vsup reaches its maximal value at 5.5V.
AZV5002DS-7 Features
With 10-UFQFN channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

AZV5002DS-7 Applications
There are a lot of Diodes Incorporated
AZV5002DS-7 Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Factory Lead Time	23 Weeks
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Surface Mount	YES
Number of Pins	10
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2016
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	10
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Consumer Audio
Voltage - Supply	1.6V~5V
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.4mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Function	Detection Switch
Supply Voltage-Max (Vsup)	5.5V
Number of Channels	1
Consumer IC Type	CONSUMER CIRCUIT
Height Seated (Max)	0.55mm
RoHS Status	ROHS3 Compliant
Mfr	Diodes Incorporated
Series	-
Product Status	Active
Interface	-
Voltage - Supply	1.6V ~ 5V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	-
Supplier Device Package	U-QFN1418-10
