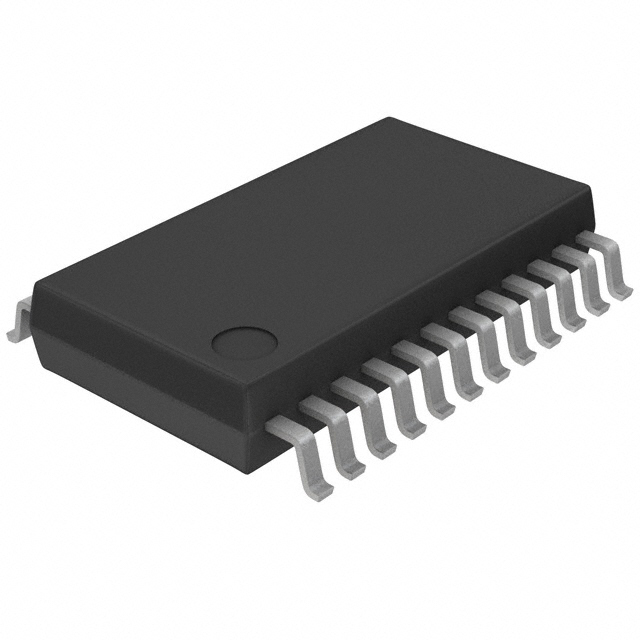

BD3872FS-E2 Overview
It comes in a case with Tape & Reel (TR). It recommended mounting type is Surface Mount. There is an embedded 24-SOP (0.213, 5.40mm Width) case. The device is with 2 channels. This part includes Audio Signal Processor functions for your reference. The device can be applied in Consumer Audio. It is supplied votage within 4.5V~9.5V. This device operates temperature at the range of -25°C~75°C TA. The number of terminations on the chip is 32. Similar parts can be found by searching for the BD387* family. TONE CONTROL CIRCUIT can be used to sort the part's consumer IC type. The minimum supply voltage (Vsup) for this part should not be less than 4.5V. It can give voltage at 8V volts. The maximal supply voltage (Vsup) reaches 9.5V. It is mounted by Surface Mount. There are 2 bands on it.
BD3872FS-E2 Features
With 24-SOP (0.213, 5.40mm Width) channels
operate temperature at the range of -25°C~75°C TA
consumer IC type: TONE CONTROL CIRCUIT

BD3872FS-E2 Applications
There are a lot of ROHM Semiconductor
BD3872FS-E2 Audio Special Purpose applications.

Mobile computing
Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703

Factory Lead Time	9 Weeks
Contact Plating	Copper, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-SOP (0.213, 5.40mm Width)
Operating Temperature	-25°C~75°C TA
Packaging	Tape & Reel (TR)
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	32
ECCN Code	EAR99
Applications	Consumer Audio
Voltage - Supply	4.5V~9.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.8mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	BD387*
Function	Audio Signal Processor
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	9.5V
Power Supplies	8V
Supply Voltage-Min (Vsup)	4.5V
Number of Channels	2
Interface	SPI
Consumer IC Type	TONE CONTROL CIRCUIT
Number of Bands	2
Harmonic Distortion	0.01%
Channel Separation	80 dB
Length	13.6mm
Width	5.4mm
RoHS Status	ROHS3 Compliant
Mfr	Rohm Semiconductor
Series	-
Product Status	Not For New Designs
Voltage - Supply	4.5V ~ 9.5V
Operating Temperature	-25°C ~ 75°C (TA)
Specifications	-
Package / Case	24-SOP (0.213", 5.40mm Width)
Supplier Device Package	24-SSOP-A
