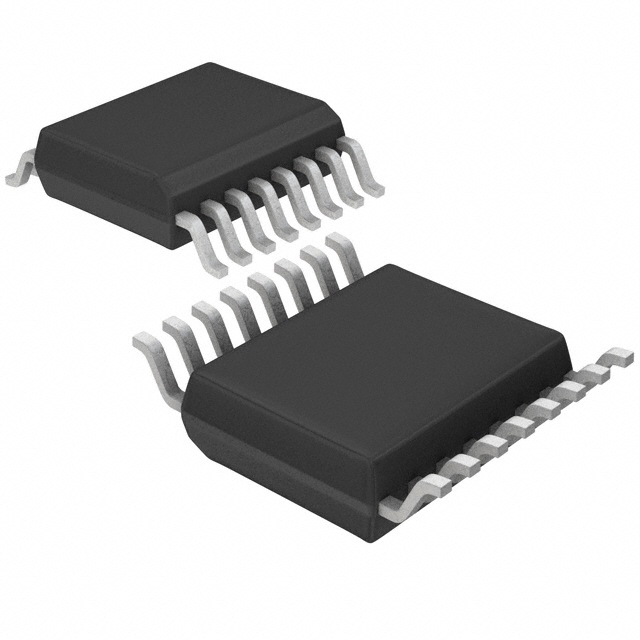

CMX823E4 Overview
In addition, the book comes with a case study as well. It is recommended that you mount it in a Surface Mount mounting type. It has been embedded with a 16-TSSOP (0.173, 4.40mm Width) case as well. There are 1 channels on the device. The Tone Decoder functions in this part are included for your reference. There is a Audio Systems version of the device. There is a supply of votage within 2.7V~5.5V days of ordering. With this device, you can operate the temperature within a range of -40°C~85°C. 16 terminations are present on the chip. 5V is its maximum supply voltage. There is a telecom IC type PAGING DECODER used in the device.
CMX823E4 Features
With 16-TSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -40°C~85°C
Supply voltage at 5V volts

CMX823E4 Applications
There are a lot of CML Microcircuits
CMX823E4 Audio Special Purpose applications.

Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors

Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Operating Temperature	-40°C~85°C
Packaging	Tube
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
Terminal Finish	Matte Tin (Sn)
Applications	Audio Systems
Voltage - Supply	2.7V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Function	Tone Decoder
Qualification Status	Not Qualified
Number of Channels	1
Interface	Serial
Telecom IC Type	PAGING DECODER
Length	5mm
Width	4.4mm
RoHS Status	ROHS3 Compliant
Mfr	CML Microcircuits
Series	-
Product Status	Active
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Specifications	-
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
