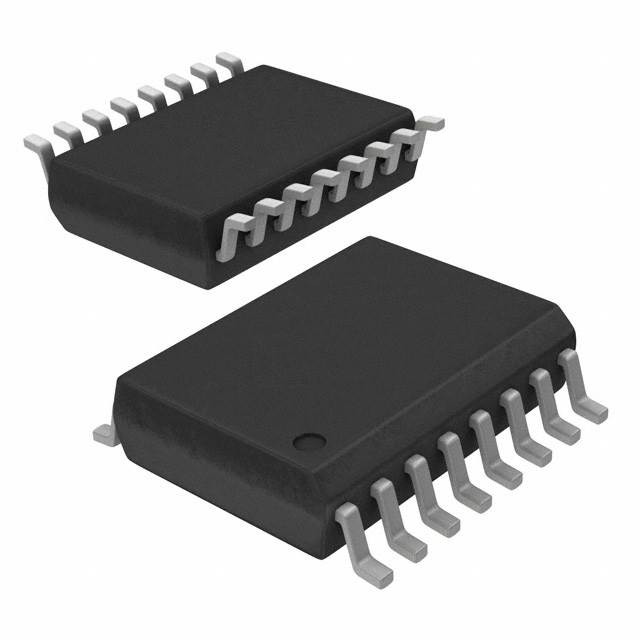

CS3310-KSZ Overview
The product comes in a case with the letter Tube. The recommended mounting type for this product is Surface Mount. Embedded with it is a 16-SOIC (0.295, 7.50mm Width) case. It has 2 channels. Volume Control functions are included in this part for your reference. Devices can be applied in Audio Systems directions. Votage is provided within 4.75V~5.25V. A temperature range of 0°C~70°C TA is used by this device. 16 is the number of terminations on the chip. Search for the CS3310 family to find similar parts. The device's related specifications can be found here: -95.5dB, +31.5dB. The chip has 16 pins. Surface Mount mounts it. In a supply voltage of 5V, the chip conducts. The supply current is controlled by 9mA. Keeping the voltage gain at 31.5 dB is a good idea. Transferring data requires 20 kHz bandwidth.
CS3310-KSZ Features
With 16-SOIC (0.295, 7.50mm Width) channels
operate temperature at the range of 0°C~70°C TA

CS3310-KSZ Applications
There are a lot of Cirrus Logic Inc.
CS3310-KSZ Audio Special Purpose applications.

Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver

Factory Lead Time	23 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Number of Pins	16
Operating Temperature	0°C~70°C TA
Packaging	Tube
Published	1998
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	16
Termination	SMD/SMT
ECCN Code	EAR99
Applications	Audio Systems
Power Rating	94mW
Voltage - Supply	4.75V~5.25V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	CS3310
Function	Volume Control
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Number of Channels	2
Interface	SPI
Supply Current-Max	9mA
Output Power	72mW
Input Offset Voltage (Vos)	750μV
Bandwidth	20 kHz
Specifications	-95.5dB, +31.5dB
Gain	31.5 dB
Max Output Power	94mW
Channel Separation	110 dB
Length	10.3mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Mfr	Cirrus Logic Inc.
Series	-
Product Status	Obsolete
Voltage - Supply	4.75V ~ 5.25V
Operating Temperature	0°C ~ 70°C (TA)
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
