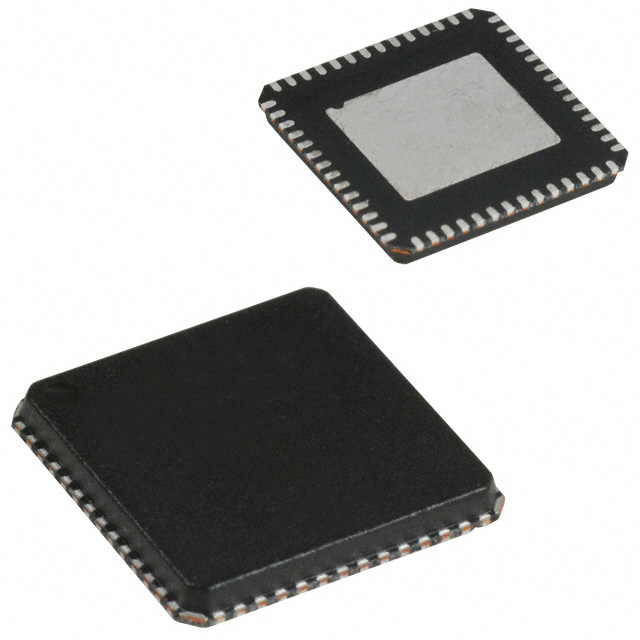

CY7C68014A-56LFXC OverviewThe outstanding performance of USB Microcontroller makes it an excellent choice.There is a 56-VFQFN Exposed Pad package available to save space.The way of Surface Mount is used to mount it.A 8051 core processor powers the device.When working, the temperature should be kept at 0°C ~ 70°C.ROMless is its program memory type.Application Specific Microcontroller is possible to achieve high efficiency wApplication Specific Microcontrollerh a 3V ~ 3.6V supply voltage.There are 24 I/Os on it.The terminals of this device are located at QUAD.It is a part of the series of controllers CY7C680xx.The EZ-USB FX2LP™ series includes this electrical component.As for the uPs/uCs/peripheral ICs, this gadget has MICROCONTROLLER.There are a total of 56 pins on it.
CY7C68014A-56LFXC Features56-VFQFN Exposed Pad package
Mounting type of Surface Mount
CY7C68014A-56LFXC ApplicationsThere are a lot of Infineon
CY7C68014A-56LFXC Microcontroller applications.
Equipment control
Instrument control
Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Surface Mount | YES |
| Supplier Device Package | 56-QFN (8x8) |
| Number of Terminals | 56 |
| Package | Tray |
| Base Product Number | CY7C68014 |
| Mfr | Infineon Technologies |
| Product Status | Obsolete |
| Package Description | HVQCCN, |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Moisture Sensitivity Level | 3 |
| Package Body Material | UNSPECIFIED |
| Supply Voltage-Nom | 3.3 V |
| Reflow Temperature-Max (s) | 20 |
| Supply Voltage-Min | 3 V |
| Operating Temperature-Max | 70 °C |
| Rohs Code | Yes |
| Manufacturer Part Number | CY7C68014A-56LFXC |
| Clock Frequency-Max | 24 MHz |
| Package Code | HVQCCN |
| Package Shape | SQUARE |
| Manufacturer | Rochester Electronics LLC |
| Part Life Cycle Code | Active |
| Number of I/O Lines | 24 |
| Ihs Manufacturer | ROCHESTER ELECTRONICS INC |
| Supply Voltage-Max | 3.6 V |
| Risk Rank | 5.44 |
| Part Package Code | QFN |
| Operating Temperature | 0°C ~ 70°C |
| Series | EZ-USB FX2LP™ |
| JESD-609 Code | e3 |
| Pbfree Code | Yes |
| Terminal Finish | MATTE TIN |
| Applications | USB Microcontroller |
| Technology | CMOS |
| Voltage - Supply | 3V ~ 3.6V |
| Terminal Position | QUAD |
| Terminal Form | NO LEAD |
| Peak Reflow Temperature (Cel) | 260 |
| Terminal Pitch | 0.5 mm |
| Reach Compliance Code | unknown |
| Pin Count | 56 |
| JESD-30 Code | S-XQCC-N56 |
| Temperature Grade | COMMERCIAL |
| Interface | I²C, USB, USART |
| Number of I/O | 24 |
| Speed | 48 MHz |
| RAM Size | 16K x 8 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
| Core Processor | 8051 |
| Program Memory Type | ROMless |
| Bit Size | 8 |
| Has ADC | NO |
| DMA Channels | NO |
| PWM Channels | NO |
| DAC Channels | NO |
| Seated Height-Max | 1 mm |
| ROM Programmability | EEPROM |
| Controller Series | CY7C680xx |
| Width | 8 mm |
| Length | 8 mm |
