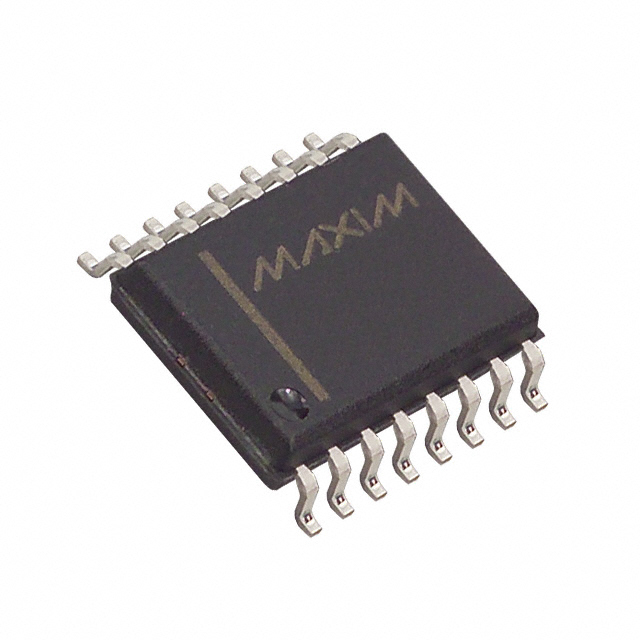

DS1007S-2+ Overview
16-SOIC (0.295, 7.50mm Width) packages eliminate the need for additional insulating hardware in applications. Reliable performance is ensured by the supply voltage of 4.75V ~ 5.25V. It is mounted using the technique of Surface Mount. The device features an operating temperature of 0°C ~ 70°C. The supplier device package for this device is 16-SOIC. Among the most important electronic devices, it belongs to the - series.
DS1007S-2+ Features
Mounting Type: -

DS1007S-2+ Applications
There are a lot of Analog Devices
DS1007S-2+ Delay Lines Timing ICs applications.

Delay Matching
Switch Debouncing
High Vibration, High Acceleration Environments
Portable and Battery-Powered Equipment
Clock Synchronization
Digital Systems
Embedded Systems
Utility Meters
Security Systems
Network Hubs, Bridges, and Routers

Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Supplier Device Package	16-SOIC
Manufacturer Part Number	MCR125STR
Manufacturer	Arrow Hart - Cooper Wiring Devices
Package	Tube
Base Product Number	DS1007
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Operating Temperature	0°C ~ 70°C
Series	-
Voltage - Supply	4.75V ~ 5.25V
Function	Multiple, NonProgrammable
Number of Independent Delays	7
Delay to 1st Tap	4ns
Available Total Delays	3ns ~ 10ns, 9ns ~ 40ns
