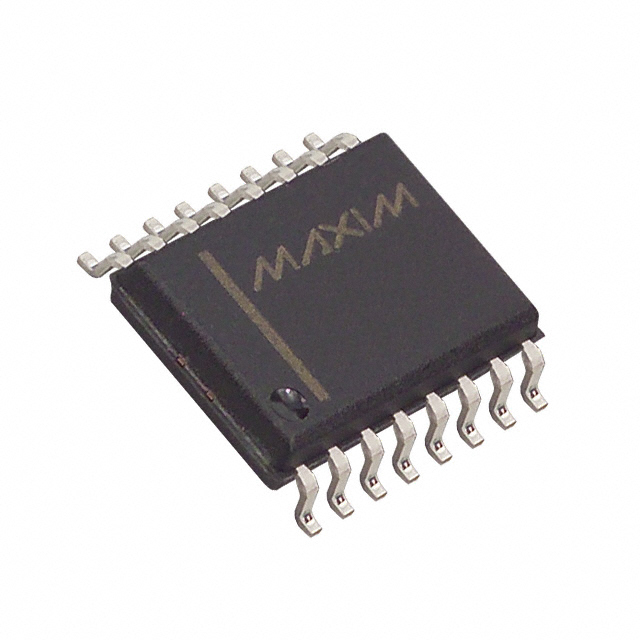

DS1013S-15+ Overview
As a cost-effective packaging method, Tube is used. Using the 16-SOIC (0.295, 7.50mm Width) package eliminates the need for additional insulating hardware in applications. It is possible to achieve reliable performance with 4.75V~5.25V due to the supply voltage. As its mounting type, Surface Mount is used. It operates at a temperature of 0°C~70°C. The device has been configured with 1 taps and steps. At DUAL are the terminals. A unique configuration is possible with the 16 terminations. During operation, 5V is supplied with a voltage. A logic type of SILICON DELAY LINE is used. It can operate with a minimum supply voltage of 4.75V. If the maximum supply voltage is 5.25V, it is acceptable for it to operate. There are a number of active components within the CMOS family. Its BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT coupled with other specific characteristics make it suitable for a variety of applications.
DS1013S-15+ Features
Supply voltage at Tube volts
operate supply current at 5V
with SILICON DELAY LINE bits
stay resistance at CMOS

DS1013S-15+ Applications
There are a lot of Rochester Electronics, LLC
DS1013S-15+ Delay Lines Timing ICs applications.

High Vibration, High Acceleration Environments
Portable and Battery-Powered Equipment
Clock Synchronization
Digital Systems
Embedded Systems
Utility Meters
Security Systems
Network Hubs, Bridges, and Routers
QDR/QDRII Memory Systems
Multiphase Clock Generation

Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Operating Temperature	0°C~70°C
Packaging	Tube
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
Terminal Finish	TIN
Additional Feature	BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT
Voltage - Supply	4.75V~5.25V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G16
Function	Multiple, NonProgrammable
Qualification Status	COMMERCIAL
Supply Voltage-Max (Vsup)	5.25V
Supply Voltage-Min (Vsup)	4.75V
Family	CMOS
Output Polarity	TRUE
Logic IC Type	SILICON DELAY LINE
Number of Taps/Steps	1
Number of Independent Delays	3
Delay to 1st Tap	15ns
Programmable Delay Line	NO
Total Delay-Nom (td)	15 ns
Length	10.285mm
Height Seated (Max)	2.67mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Supplier Device Package	16-SOIC
Package	Tube
Base Product Number	DS1013
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Operating Temperature	0°C ~ 70°C
Series	-
Voltage - Supply	4.75V ~ 5.25V
Available Total Delays	15ns
Lead Free	Lead Free
