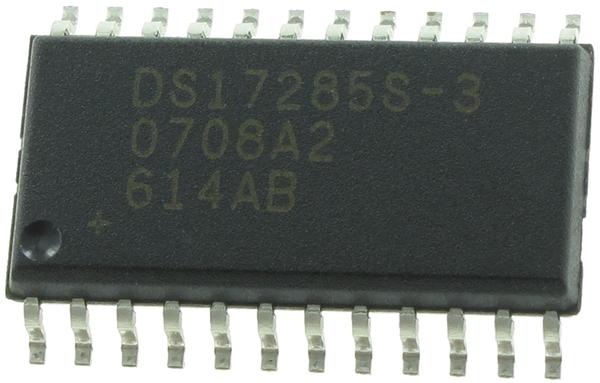

DS17285S-3+ Overview
There is an embedded version in the package 24-SOIC (0.295, 7.50mm Width).This electrical RTC is powered by 2.7V ~ 3.7V voltage.This electrical real time clock is of type Clock/Calendar.Surface Mount is the way to mount this real time clock (RTC).A temperature of 0°C ~ 70°C should be used for operation.Its supply voltage is 2.5V ~ 3.7V.A part like this is included in Clock & Timer ICs.In these RTC times, there is a memory of 2KB where data and programs can be stored.Real-time clocks belonging to the * series are this type.
DS17285S-3+ Features
24-SOIC (0.295, 7.50mm Width) package
* series

DS17285S-3+ Applications
There are a lot of Analog Devices
DS17285S-3+ Real Time Clocks applications.

Automotive
Industrial
Digital still camera
Digital video camera
Printers
Copy machines
Mobile equipment
Battery powered devices
Printers and copiers
Electronic metering

Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295, 7.50mm Width)
Supplier Device Package	24-SOIC
Mounting Style	SMD/SMT
Package	Tube
Base Product Number	DS17285
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Maximum Operating Temperature	+ 70 C
Supply Voltage - Max	3.7 V
Minimum Operating Temperature	0 C
Supply Voltage - Min	2.7 V
RTC Bus Interface	Multiplexed
RTC Memory Size	2 kB
Series	*
Operating Temperature	0°C ~ 70°C
Type	Clock/Calendar
Subcategory	Clock & Timer ICs
Voltage - Supply	2.7V ~ 3.7V
Function	Alarm, Calendar, Clock
Interface	Parallel
Memory Size	2KB
Product Type	Real Time Clocks
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Current - Timekeeping (Max)	2mA @ 2.7V ~ 3.7V
Voltage - Supply, Battery	2.5V ~ 3.7V
Features	Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
