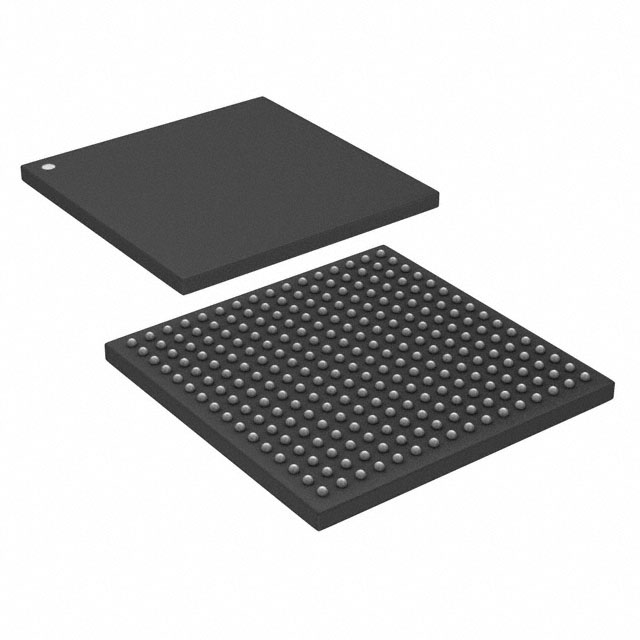

DS31406GN+ Overview
There are 256 terminations in it. The part provides a voltage of 1.8V volts. 1 are present on the device. normaloperation has a maximum frequency of 750MHz. The Surface Mount mounting method is recommended. There are 256 pins on this device. The board has 256 pins. The minimum working temperature of this device cannot be lower than -40°C. There should be a temperature below 85°C during operation. This device uses a ATM/SONET/SDH CLOCK RECOVERY CIRCUIT telecom IC.
DS31406GN+ Features
Include 1 Circuits
with 256 Pins

DS31406GN+ Applications
There are a lot of Microsemi
DS31406GN+ application specific timer applications.

Ethernet switch/router
PCI Express 2.0/3.0
Broadcast video/audio timing
Processor and FPGA clocking
Any-frequency clock conversion
MSAN/DSLAM/PON
Fibre Channel, SAN
Telecom line cards
1 GbE and 10 GbE
Servers, Storage, Search Acceleration

Lifecycle Status	IN PRODUCTION (Last Updated: 4 weeks ago)
Mount	Surface Mount
Number of Pins	256
Pbfree Code	yes
Number of Terminations	256
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Terminal Position	BOTTOM
Terminal Form	BALL
Number of Functions	1
Supply Voltage	1.8V
Pin Count	256
Temperature Grade	INDUSTRIAL
Number of Circuits	1
Frequency (Max)	750MHz
Input	CMOS
PLL	Yes
Telecom IC Type	ATM/SONET/SDH CLOCK RECOVERY CIRCUIT
Radiation Hardening	No
RoHS Status	RoHS Compliant
