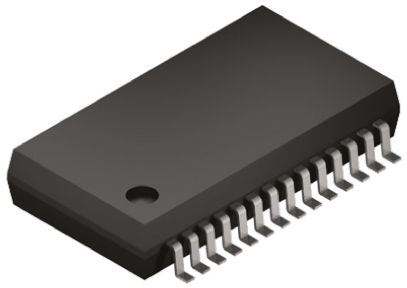

DS92LV1224TMSA/NOPB Overview
Rail/Tube cases are used for delivery.28-SSOP (0.209, 5.30mm Width)-case packaging is used.The Surface Mount mounting type is recommended.A variable range of operating temperatures is provided by the device.3V ~ 3.6V volts are the supply output of the chip.To enter input, the user can use a LVCMOS/LVTTL form.Deserializer is the output type of the interface IC.To operate, there are 1 inputs.Serializer/Deserializer is possible to maintain 10 outputs on the device.This electrical component can be found in the * series.The element consists of 1 elements.The device has 1 receivers.Embedded 10 drivers are included on the part.28 pins are present on the chip.
DS92LV1224TMSA/NOPB Features
Available in 28-SSOP (0.209, 5.30mm Width) Package / Case
Operating Temperature at the range of -40°C ~ 85°C (TA)
Number of Receivers: 1
With 10 Drivers

DS92LV1224TMSA/NOPB Applications
There are a lot of National Semiconductor
DS92LV1224TMSA/NOPB serializers and deserializers applications.

Industrial control panels
Portable lab instruments
Panel meters
Auto dashboard displays
Appliance control panels
Industrial Control Indicator
Relay Driver
Digital Clock, Thermometer, Counter, Voltmeter
Instrumentation Readouts
Instrumentation

Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Supplier Device Package	28-SSOP
Package	Bulk
Base Product Number	098887
Mfr	Molex
Product Status	Active
Diff. Input Low Threshold Volt	-0.05(mV)
Operating Temperature Classification	Industrial
Package Type	SSOP
Operating Temp Range	-40C to 85C
Transmission Data Rate	82.5(MBps)
Operating Supply Voltage (Typ)	3.3(V)
Rad Hardened	No
Differential Input High Threshold Voltage	0.05(mV)
Mounting	Surface Mount
Series	*
Packaging	Rail/Tube
Operating Temperature	-40°C ~ 85°C (TA)
Voltage - Supply	3V ~ 3.6V
Pin Count	28
Function	Deserializer
Number of Outputs	10
Operating Temperature (Max)	85C
Operating Temperature (Min)	-40C
Output Type	Deserializer
Number of Elements	1
Power Dissipation	1270(W)
Input Type	LVCMOS/LVTTL
Data Rate	660Mbps
Number of Inputs	1
Number of Drivers	10
Number of Receivers	1
