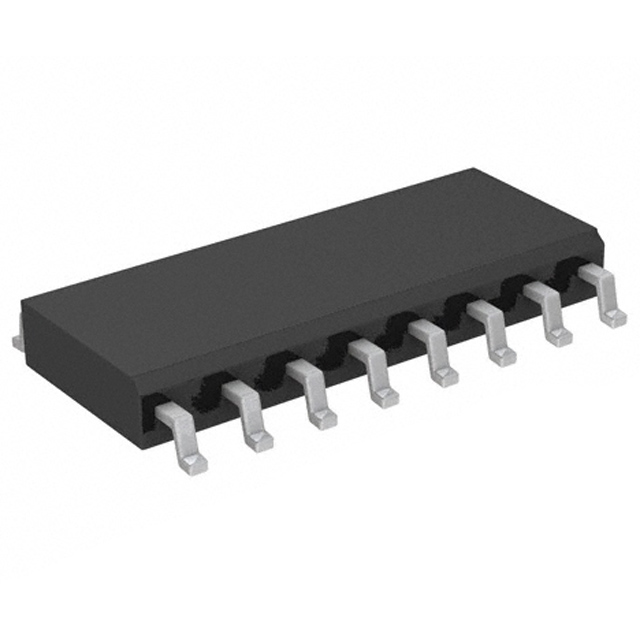

IRS20955SPBF Overview
The product comes in a case with the letter Tube. The recommended mounting type for this product is Surface Mount. 16-SOIC (0.154, 3.90mm Width) case embeds it. Line Driver functions are included in this part for your reference. Devices can be applied in Audio Systems directions. Votage is provided within 10V~18V. A temperature range of -40°C~125°C TA is used by this device. 16 is the number of terminations on the chip. Search for the IRS20955SPBF family to find similar parts. The chip has 16 pins. Surface Mount mounts it. A voltage of 12V can be supplied to it. With a frequency of 800kHz, it can perform well. When operating at maximum output current, it reaches 1.2A.
IRS20955SPBF Features
With 16-SOIC (0.154, 3.90mm Width) channels
operate temperature at the range of -40°C~125°C TA
Supply voltage at 12V volts

IRS20955SPBF Applications
There are a lot of Infineon Technologies
IRS20955SPBF Audio Special Purpose applications.

Portable electronics
Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver

Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Number of Pins	16
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Published	2007
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	16
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Audio Systems
Max Power Dissipation	1W
Voltage - Supply	10V~18V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	12V
Frequency	800kHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	IRS20955SPBF
Function	Line Driver
Number of Outputs	2
Qualification Status	Not Qualified
Output Voltage	118V
Max Output Current	1.2A
Interface	Analog
Power Dissipation	1W
Max Supply Current	3mA
Propagation Delay	90 ns
Turn On Delay Time	90 ns
Rise Time	15ns
Fall Time (Typ)	10 ns
Turn On Time	0.105 μs
Turn Off Time	0.09 μs
Built-in Protections	OVER CURRENT; UNDER VOLTAGE
Output Current Flow Direction	SOURCE SINK
Height	1.4986mm
Length	9.9568mm
Width	3.9878mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free
Mfr	Infineon Technologies
Series	-
Product Status	Obsolete
Number of Channels	2
Voltage - Supply	10V ~ 18V
Operating Temperature	-40°C ~ 125°C (TA)
Specifications	-
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
