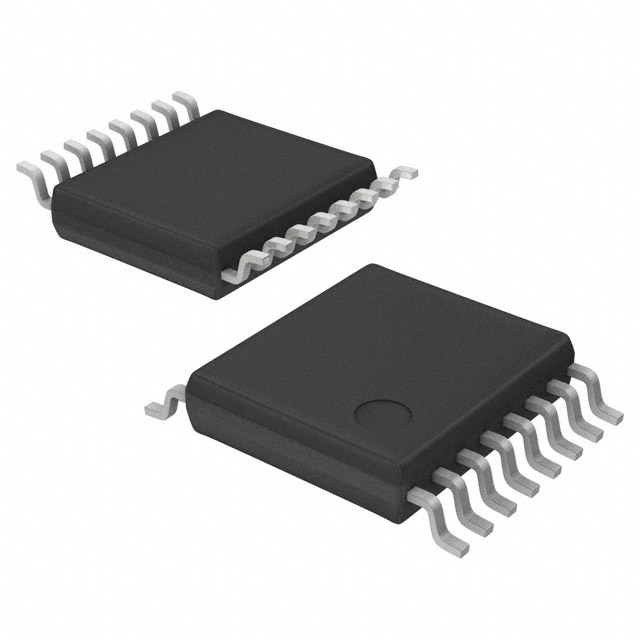

LC89091JA-AH Overview
In addition, the book comes with a case study as well. It is recommended that you mount it in a Surface Mount mounting type. Case 16-LSSOP (0.173, 4.40mm Width) contains it. There are 1 channels on the device. The Demodulator functions in this part are included for your reference. There is a Consumer Audio version of the device. There is a supply of votage within 3V~3.6V days of ordering. With this device, you can operate the temperature within a range of -30°C~70°C TA. 16 terminations are present on the chip. For more information, please refer to the device specs: 32kHz ~ 192kHz. 16 pins are available on the chip. To sort IC types, use CONSUMER CIRCUIT. There should be no voltage below 3V on the supply line of this component (Vsup). When Vsup reaches 3.6V, the maximum supply voltage (Vsup) is reached.
LC89091JA-AH Features
With 16-LSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -30°C~70°C TA
consumer IC type: CONSUMER CIRCUIT

LC89091JA-AH Applications
There are a lot of ON Semiconductor
LC89091JA-AH Audio Special Purpose applications.

Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors

Lifecycle Status	ACTIVE (Last Updated: 1 day ago)
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	16-LSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	16
Operating Temperature	-30°C~70°C TA
Packaging	Tape & Reel (TR)
Published	2013
JESD-609 Code	e6
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	16
Terminal Finish	Tin/Bismuth (Sn/Bi)
Applications	Consumer Audio
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	0.65mm
Function	Demodulator
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Number of Channels	1
Interface	I2C
Specifications	32kHz ~ 192kHz
Consumer IC Type	CONSUMER CIRCUIT
Length	5.2mm
Width	4.4mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
