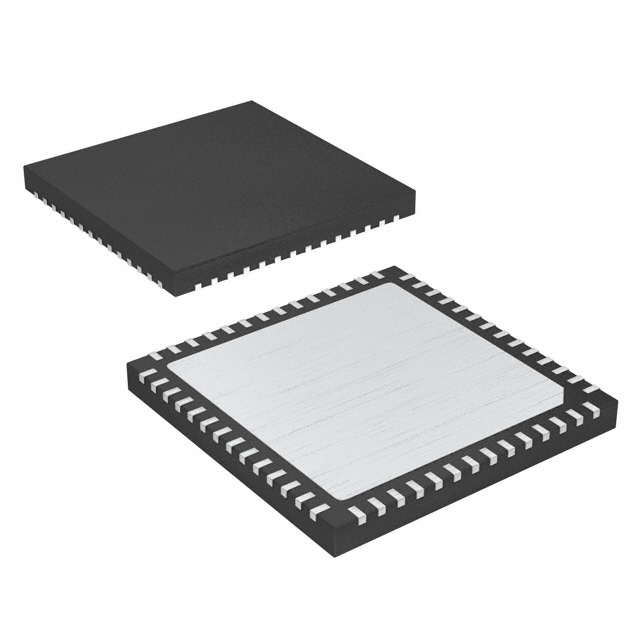

MAX19711ETN+ Overview
The package is packaged in the way that 56-WFQFN Exposed Pad would package it.In order to design this electronic part, 10 Bits have been used.The package Tube contains this file embedded in it.It is a method of terminating a transmission line with an impedance-matching device that is known as 56 termination.Using 2.7V~3.3V, this electrical device converts AC voltage into regulated DC voltage and drives a load with regulated DC power.A voltage of 2.7V~3.3V is provided to this electrical device by its supply/digital voltage.In order to establish its related parts, one needs to identify the base part number associated with the part.A 3V supply voltage should be used for the supply voltage.In terms of its design, it has 56 pins.There are a total of 96 pins on this device.Devices such as this must be operated at temperatures below 85°C in order to function properly.In this case, the telecom IC it adopts is TELECOM CIRCUIT.There is a 1.83V power supply attached to it and it runs on it.As a minimum, the operating temperature should be -40°C degrees Celsius.
MAX19711ETN+ Features

MAX19711ETN+ Applications
There are a lot of Maxim Integrated
MAX19711ETN+ AFE applications.

Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
Scientific instruments.
Music reproduction technology
Communication Systems
Data Acquisition Systems

Package / Case	56-WFQFN Exposed Pad
Surface Mount	YES
Number of Pins	56
Packaging	Tube
Published	2006
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	56
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Power Rating	37.5mW
Max Power Dissipation	37.5mW
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3V
Terminal Pitch	0.4mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	MAX19711
Pin Count	48
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Power Supplies	1.83V
Temperature Grade	INDUSTRIAL
Number of Channels	2
Number of Bits	10
Quiescent Current	17mA
Voltage - Supply, Analog	2.7V~3.3V
Voltage - Supply, Digital	2.7V~3.3V
Telecom IC Type	TELECOM CIRCUIT
Number of D/A Converters	2
Length	7mm
Height Seated (Max)	0.8mm
Width	7mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mounting Type	Surface Mount
Supplier Device Package	56-TQFN (7x7)
Package	Tray
Base Product Number	MAX19711
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Series	-
Power (Watts)	37.5 mW
Voltage - Supply, Analog	2.7V ~ 3.3V
Voltage - Supply, Digital	2.7V ~ 3.3V
