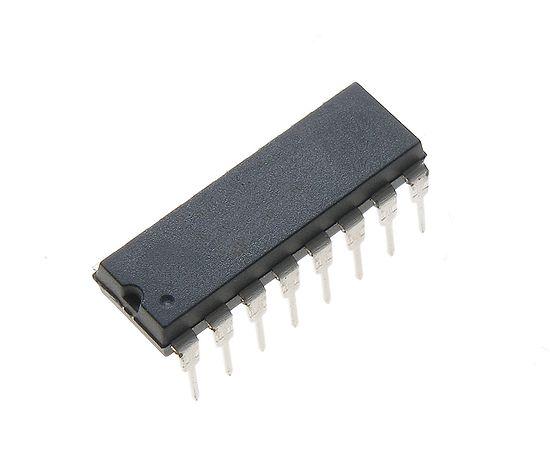

MAX311CPE+ Overview
In the {0} package, it is used.
MAX311CPE+ Features

MAX311CPE+ Applications
There are a lot of Maxim Integrated
MAX311CPE+ Special Purpose Analog Switches applications.

Autonomous vehicles & robots
Backstop gauging
Ball screw positioning
Converting
Conveying
Cut-to-length
Filling
Food & beverage
Linear measurement
Material handling

Factory Lead Time	6 Weeks
Mounting Type	Through Hole
Package / Case	16-DIP (0.300, 7.62mm)
Surface Mount	NO
Operating Temperature	0°C~70°C TA
Packaging	Tube
Published	1995
JESD-609 Code	e3
Feature	Break-Before-Make
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Video
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	15V
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MAX311
Pin Count	16
JESD-30 Code	R-PDIP-T16
Qualification Status	Not Qualified
Power Supplies	+-15V
Number of Channels	2
Voltage - Supply, Single/Dual (±)	9V~36V ±4.5V~18V
Neg Supply Voltage-Nom (Vsup)	-15V
On-State Resistance (Max)	250Ohm
Multiplexer/Demultiplexer Circuit	4:1
Off-state Isolation-Nom	58 dB
Switch-on Time-Max	1000ns
Signal Current-Max	0.05A
Length	19.175mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mount	Through Hole
Number of Pins	16
Supplier Device Package	16-PDIP
Mounting Style	Through Hole
Turn-On Delay Time	100 ns
RoHS	Compliant
Package	Tube
Base Product Number	MAX311
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Maximum Operating Temperature	+ 70 C
Supply Voltage - Max	33 V
Minimum Dual Supply Voltage	+/- 4.5 V
Minimum Operating Temperature	0 C
Supply Voltage - Min	9 V
On Resistance - Max	300 Ohms
Off Time - Max	100 ns
On Time - Max	100 ns
Maximum Dual Supply Voltage	+/- 16.5 V
Packaging	Bulk
Operating Temperature	0°C ~ 70°C (TA)
Series	-
Resistance	250 Ω
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Max Power Dissipation	550 mW
Operating Supply Voltage	16.5 V
Configuration	2 x 4:1
Number of Channels	4
Number of Circuits	2
Max Supply Voltage	33 V
Min Supply Voltage	9 V
Operating Supply Current	100 nA
Nominal Supply Current	75 µA
Throw Configuration	4PST
Logic Function	Multiplexer
Supply Type	Dual, Single
Turn-Off Delay Time	100 ns
Max Dual Supply Voltage	16.5 V
-3db Bandwidth	-
Min Dual Supply Voltage	4.5 V
Switch Circuit	-
Voltage - Supply, Single (V+)	9V ~ 36V
Voltage - Supply, Dual (V±)	±4.5V ~ 18V
Product	Multiplexers
Features	Break-Before-Make
Radiation Hardening	No
Lead Free	Contains Lead
