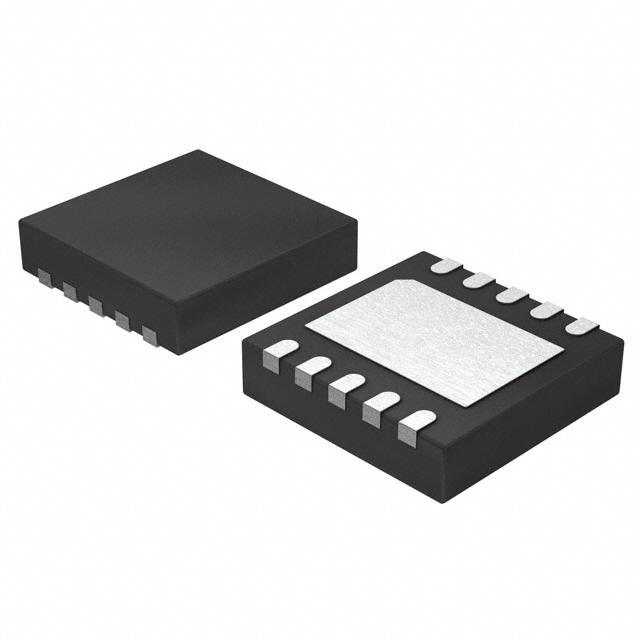

MAX31851RATB+T Overview
Packaging consists of materials from Tape & Reel (TR).There is a 10-WFDFN Exposed Pad package that is used in order to conserve space.This type of Thermocouple to Digital Converter is capable of providing superior performance.Surface Mount is used as the mounting method.In order to avoid unnecessary cooling processes, the operating temperature should be kept at -40°C~125°C.Sensor and detector interface uses the input type Thermocouple (Multiple).The use of 10 terminations is intended to prevent signals from reflecting off the transmission line's end.According to its base part number of MAX31851, related electronic parts are available.In this case, it is configured with 1 functions.There is a voltage supply of 3.3V that is used to operate it.A Surface Mount mounting is used.As its output type, it uses Digital.Maintaining the operating supply current at 900μA may improve efficiency.3V is maintained as the minimum supply voltage.There is a maximum supply voltage of 3.7V.
MAX31851RATB+T Features
With 3.3V channels
operate temperature at the range of 900μA
consumer IC type: 3V

MAX31851RATB+T Applications
There are a lot of Maxim Integrated
MAX31851RATB+T applications of sensor and detector interfaces.

Crankshaft VRS Interfaces
Vehicle Speed VRS Interfaces
Automatic Lighting (Residential and Commercial)
Automation of Doors
Motion Triggered Events (Animal photography)
Position sensor
Level transmitter
Proximity sensor
Wearable Fitness
Hearables

Factory Lead Time	5 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2015
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	10
Type	Thermocouple to Digital Converter
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MAX31851
JESD-30 Code	R-PDSO-N10
Output Type	Digital
Supply Voltage-Max (Vsup)	3.7V
Supply Voltage-Min (Vsup)	3V
Operating Supply Current	900μA
Input Type	Thermocouple (Multiple)
Length	4mm
Height Seated (Max)	0.8mm
Width	3mm
RoHS Status	ROHS3 Compliant
Supplier Device Package	10-TDFN (3x4)
Package	Tape & Reel (TR)
Base Product Number	MAX31851
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
Operating Temperature	-40°C ~ 125°C
Series	-
Current - Supply	900 µA
