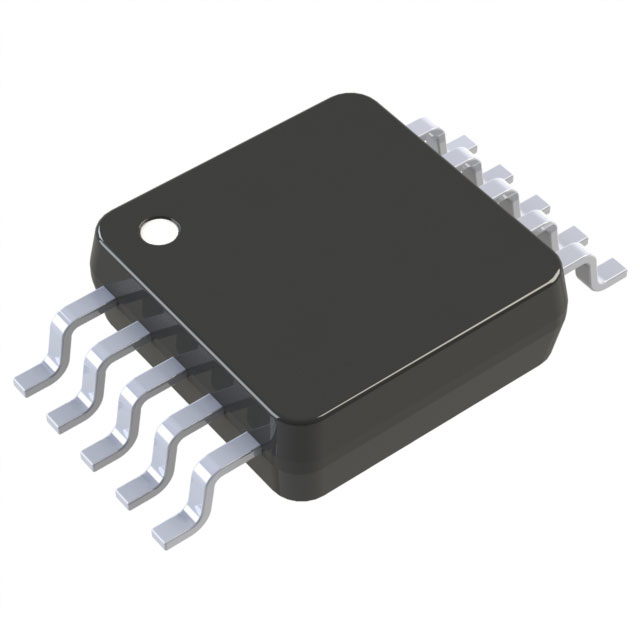

MAX4298EUB+ Overview
Moreover, the book has an appendix that contains a case study. There is only one mounting type recommended for the product, which is Surface Mount. There is a 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) case embedded in it. In this case, the device has 2 channels. There are Line Driver functions included in this part for your reference. This device can be applied in both Pre-Amplifier and X directions. As far as I know, it is supplied within 4.5V~5.5V days. In this device, the temperature range is -40°C~85°C TA, which is the range of this device. There are 10 terminations on the chip, which is the number of terminations on the chip. You can find similar parts by searching for the MAX4298 family of parts. The following specifications are related to the device: Class AB, which can be found here. In order to sort a part based on its consumer IC type, CONSUMER CIRCUIT can be used. There should be a minimum supply voltage (Vsup) for this part, which should not be less than 4.5V volts. 5.5V is the maximum supply voltage (Vsup). As far as the supply current is concerned, it operates under the 17.5mA parameter.
MAX4298EUB+ Features
With 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) channels
operate temperature at the range of -40°C~85°C TA
consumer IC type: CONSUMER CIRCUIT

MAX4298EUB+ Applications
There are a lot of Maxim Integrated
MAX4298EUB+ Audio Special Purpose applications.

High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors
Telecom Systems

Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2001
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	10
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Pre-Amplifier
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	MAX4298
JESD-30 Code	S-PDSO-G10
Function	Line Driver
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Supply Voltage-Min (Vsup)	4.5V
Number of Channels	2
Interface	Analog
Supply Current-Max	17.5mA
Specifications	Class AB
Consumer IC Type	CONSUMER CIRCUIT
Length	3mm
Height Seated (Max)	1.1mm
Width	3mm
RoHS Status	ROHS3 Compliant
Mfr	Analog Devices Inc./Maxim Integrated
Series	-
Product Status	Active
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-uMAX/uSOP
