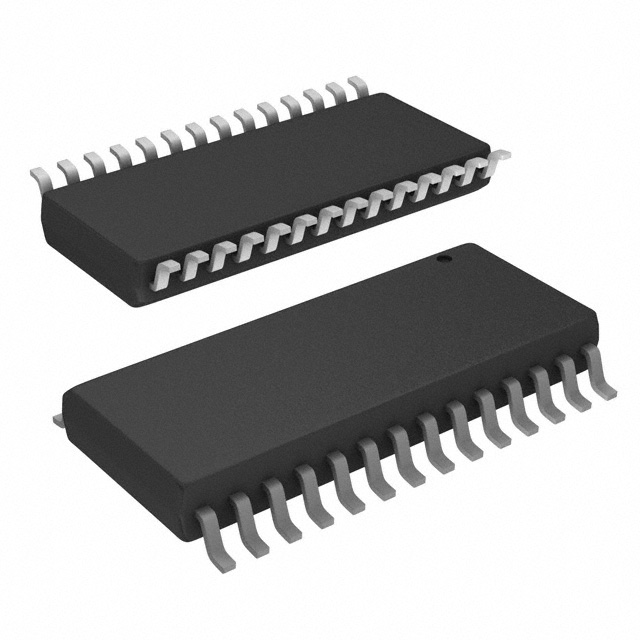

MAX4540EAP Overview
If this part is used, {0} will appear.
MAX4540EAP Features

MAX4540EAP Applications
There are a lot of Analog Devices
MAX4540EAP Special Purpose Analog Switches applications.

Conveying
Cut-to-length
Filling
Food & beverage
Linear measurement
Material handling
Metal forming & fabrication
Mobile equipement
Motor feedback
Packaging

Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Mount	Surface Mount
Number of Pins	20
Supplier Device Package	20-SSOP
Package	Tube
Base Product Number	MAX4540
Mfr	Analog Devices Inc./Maxim Integrated
Product Status	Obsolete
RoHS	Compliant
Operating Temperature	-40°C ~ 85°C (TA)
Series	-
Packaging	Bulk
Resistance	75 Ω
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Applications	Audio
Number of Channels	2
Number of Circuits	2
Max Supply Voltage	12 V
Min Supply Voltage	2.7 V
Throw Configuration	4PST
Logic Function	Multiplexer
Supply Type	Dual, Single
Max Dual Supply Voltage	6 V
-3db Bandwidth	-
On-State Resistance (Max)	75Ohm
Min Dual Supply Voltage	2.7 V
Multiplexer/Demultiplexer Circuit	4:1
Switch Circuit	-
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.7V ~ 6V
Features	Break-Before-Make
Radiation Hardening	No
Lead Free	Contains Lead
