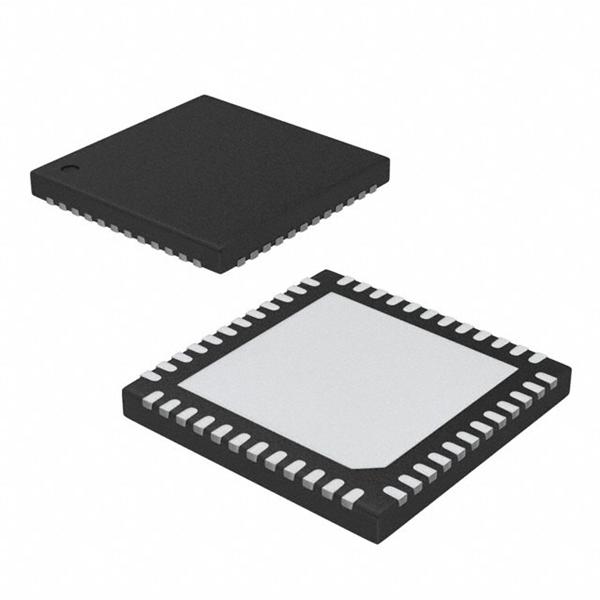

MAX9218ETM+ OverviewThere is a Tube case in which the product is delivered.Inputs 1 have to be operated.There is an option for the device to maintain 27 outputs.Interface ICs classified as LINE RECEIVER can be found in the part.48 terminations are totaled.Its supply voltage is 3.3V.By mounting the device with Surface Mount, it can be used.Interface is essential that the minimum operating temperature of this part is not -40°C degrees Celsius.Interface is important that the operating temperature is lower than 85°C.In order to operate the device, it requires a supply current of 70mA.48 pins are used in the design of the chip.
MAX9218ETM+ FeaturesInterface IC Type : LINE RECEIVER
Operate supply voltage at 70mA
MAX9218ETM+ ApplicationsThere are a lot of Maxim Integrated
MAX9218ETM+ serializers and deserializers applications.
Industrial Control Indicator
Relay Driver
Digital Clock, Thermometer, Counter, Voltmeter
Instrumentation Readouts
Instrumentation
Test Equipment
Hand Held Instruments
Bargraph Dlsplays
Numerlc and Non-Numerlc Panel Dlsplays
High and Low Temperature Envlronment s where LCD
| Factory Lead Time | 6 Weeks |
| Mount | Surface Mount |
| Packaging | Tube |
| Published | 2010 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 48 |
| ECCN Code | EAR99 |
| Terminal Finish | Matte Tin (Sn) |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.739W |
| Terminal Position | QUAD |
| Terminal Form | NO LEAD |
| Peak Reflow Temperature (Cel) | 260 |
| Number of Functions | 1 |
| Supply Voltage | 3.3V |
| Terminal Pitch | 0.4mm |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Pin Count | 48 |
| JESD-30 Code | S-XQCC-N48 |
| Number of Outputs | 27 |
| Qualification Status | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Operating Supply Current | 70mA |
| Data Rate | 700 Mbps |
| Number of Inputs | 1 |
| Input Characteristics | DIFFERENTIAL |
| Interface IC Type | LINE RECEIVER |
| Receiver Number of Bits | 1 |
| Interface Standard | GENERAL PURPOSE |
| Length | 6mm |
| Height Seated (Max) | 0.8mm |
| Width | 6mm |
| RoHS Status | ROHS3 Compliant |
| Package / Case | TQFN-EP-48 |
| Mounting Style | SMD/SMT |
| Package | Tube |
| Base Product Number | MAX921 |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Product Status | Active |
| Pd - Power Dissipation | 1739 mW |
| Maximum Operating Temperature | + 85 C |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Supply Voltage - Min | 3 V |
| Series | * |
| Type | Deserializer |
| Subcategory | Interface ICs |
| Number of Outputs | 27 Output |
| Output Type | LVCMOS/LVTTL |
| Operating Supply Voltage | 3 V to 3.6 V |
| Operating Supply Current | 70 mA |
| Input Type | LVDS |
| Data Rate | 700 Mb/s |
| Number of Inputs | 1 Input |
| Product Type | Serializers & Deserializers - Serdes |
