MAX9248ECM+

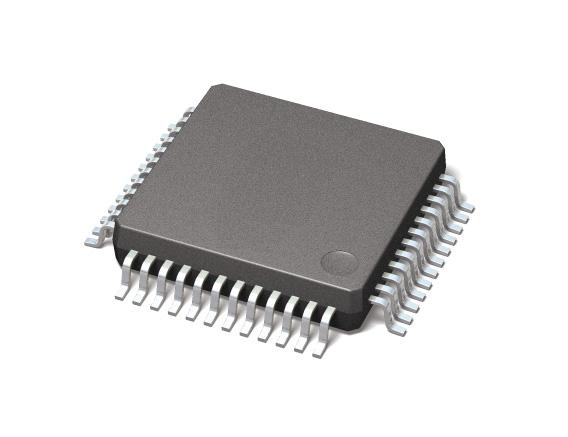

The picture is for reference only, please refer to the product specification
MAX9248ECM+
    Part Number:KY-MAX9248ECM+
    Mfr. Part No:MAX9248ECM+
    Mfr.:Analog Devices
    Stock:9708
    Description: Tin 48 Serializers & Deserializers
Add to cart
In Stock: 9708
    +
  • *
  • Please send your requirements to E-mail:sales@kywos.com,we will reply you as soon as possible
  • Inquiry
  • Products Details
  • MAX9248ECM+ Overview
    48-LQFP-case packaging is used.The Surface Mount mounting type is recommended.A variable range of operating temperatures is provided by the device.3V ~ 3.6V volts are the supply output of the chip.To enter input, the user can use a LVDS form.LVCMOS, LVTTL is the output type of the interface IC.To operate, there are 1 inputs.Serializer/Deserializer is possible to maintain 27 outputs on the device.There are 48 pins on the chip.Surface Mount allows mounting of the device.Interface ICs includes this chip.There is a 3 V to 3.6 V-volt operating supply voltage specified for the chip.This electrical component can be found in the - series.-40 °C is the minimum operating temperature for this part.Below 85 °C is the required operating temperature.Embedded 27 drivers are included on the part.
    MAX9248ECM+ Features
    Available in 48-LQFP Package / Case
    Operating Temperature at the range of -40°C ~ 85°C (TA)
    Subcategory: Interface ICs
    With 27 Drivers

    MAX9248ECM+ Applications
    There are a lot of Analog Devices
    MAX9248ECM+ serializers and deserializers applications.

    Industrial control panels
    Portable lab instruments
    Panel meters
    Auto dashboard displays
    Appliance control panels
    Industrial Control Indicator
    Relay Driver
    Digital Clock, Thermometer, Counter, Voltmeter
    Instrumentation Readouts
    Instrumentation
    Lifecycle StatusProduction (Last Updated: 1 month ago)
    Contact PlatingTin
    MountSurface Mount
    Mounting TypeSurface Mount
    Package / Case48-LQFP
    Number of Pins48
    Supplier Device Package48-LQFP (7x7)
    Weight181.692094 mg
    Mounting StyleSMD/SMT
    Manufacturer Lifecycle StatusPRODUCTION (Last Updated: 1 month ago)
    RoHSCompliant
    MSLMSL 1 - Unlimited
    PackageTray
    Base Product NumberMAX9248
    MfrAnalog Devices Inc./Maxim Integrated
    Product StatusActive
    Maximum Operating Temperature+ 85 C
    Supply Voltage - Max3.6 V
    Minimum Operating Temperature- 40 C
    Supply Voltage - Min3 V
    Operating Temperature-40°C ~ 85°C (TA)
    Series-
    TypeDeserializer
    Max Operating Temperature85 °C
    Min Operating Temperature-40 °C
    SubcategoryInterface ICs
    Max Power Dissipation1.739 W
    Voltage - Supply3V ~ 3.6V
    FunctionDeserializer
    Number of Outputs27
    Output TypeLVCMOS, LVTTL
    Operating Supply Voltage3 V to 3.6 V
    InterfaceParallel, Serial
    Max Supply Voltage3.6 V
    Min Supply Voltage3 V
    Input TypeLVDS
    Data Rate840 Mbps
    Number of Inputs1
    Product TypeSerializers & Deserializers - Serdes
    Number of Drivers27
    REACH SVHCUnknown
    Radiation HardeningNo
    Lead FreeLead Free
