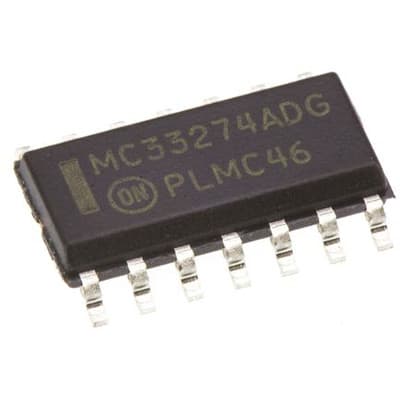

MC33272A/74A, NCV33272A/74A, High Slew Rate, Low Input Offset Voltage, Operational Amplifiers, ON Semiconductor?The ON Semiconductor MC33272A/74A, NCV33272A/74A Dual and Quad Op Amps incorporate Bipolar inputs along with a patented Zip-R-Trim element for input offset voltage reduction. They have low input offset voltage and high gain bandwidth product. Dual-doublet frequency compensation is used to increase the slew rate while maintaining low input noise characteris

Alternate Mfr Part Number	5165562P
Amplifier Type	General Purpose
Channel Separation	-120 dB
Common Mode Rejection Ratio	100 dB
Density Noise	18 nV/vHz
Dimensions	0.059\” (1.5mm) X 0.00 in W X 0.34 in L
Dimensions	8.75 x 4.00 x 1.50 mm
Gain Bandwidth	24 MHz
Harmonic Distortion	0.003 %
Height	0.059" (1.5mm)
Input Bias Current	800 nA
Input Offset Current	80 nA
Input Offset Voltage	1.8 mV
Input Resistance	16 MOhms
Input Voltage	+/-15
Input Voltage Range	-15 to 13.2 V
Length	0.344 in
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Noise Voltage	18 nV/sqrt Hz
Number of Amplifiers	Quad
Number of Channels per Chip	4
Number of Pins	14
Output Current	37 mA
Output Type	Swing
Package Type	SOIC
Product Header	MC33274 Series Monolithic Operational Amplifier
Series	Op Amp Series
Slew Rate	10 V/µs
Supply Current	2.15 mA
Temperature Operating Range	-40 to +85 °C
Type of Power Supply	Dual ; Single
Typical Dual Supply Voltage	±1.5 to ±18 V
Typical Single Supply Voltage	3 to 36 V
Voltage, Input, High Level	13.2 V
Voltage, Input, Low Level	-15 V
Voltage, Output, High Level	13.9 V
Voltage, Output, Low Level	-13.9 V
Width	0 in
