Add to cart |
| Amplifier Type | General Purpose |
| Density Noise | 28 nV/vHz |
| Dimensions | 0.037\” (0.95mm) X 0.00 in W X 0.12 in L |
| Dimensions | 3.00 x 3.00 x 0.95 mm |
| Gain Bandwidth | 1 MHz |
| Height | 0.037" (0.95mm) |
| Input Bias Current | 19 pA |
| Input Offset Current | +/-1 pA |
| Input Offset Voltage | 4.5 mV |
| Input Voltage Range | -0.3 to 5.8 V |
| Length | 0.118 in |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 2 |
| Number of Pins | 8 |
| Output Current | 23 mA |
| Output Type | Rail to Rail |
| Package Type | MSOP |
| Slew Rate | 0.6 V/μs |
| Temperature Operating Range | -40 to +85 °C |
| Type of Power Supply | Single Output |
| Typical Single Supply Voltage | 1.8 to 6 V |
| Voltage, Input, High Level | 5.8 V |
| Voltage, Input, Low Level | -0.3 V |
| Width | 0 in |

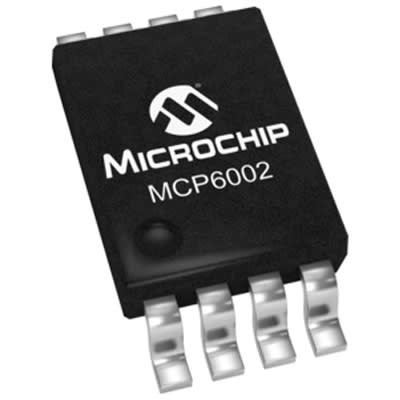

MCP6002T-I/MS Datasheet
