Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 μV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	General Purpose ; High Speed ; Low Power ; Rail-To-Rail ; Single Supply
Bandwidth	2.8 MHz
Common Mode Rejection Ratio	90 dB
Gain Bandwidth	2800 kHz
Input Bias Current	20 pA
Input Offset Current	+/-1 pA
Input Offset Voltage	2000 μV
Input Voltage	2.4 to 3
Noise Voltage	21 nV/sqrt Hz
Number of Amplifiers	Single
Number of Circuits	1
Output Current	30 mA

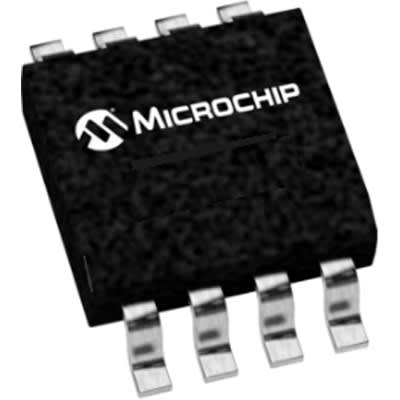

Package Type	SOIC-8
Product Header	Single Supply CMOS Operational Amplifier
Slew Rate	2.3 V/μs
Supply Current	±30 mA
Supply Voltage	2.7-6 V
Temperature Operating Range	-40 to +85 °C
Voltage, Output, High Level	2680 mV
Voltage, Output, Low Level	2680 mV
