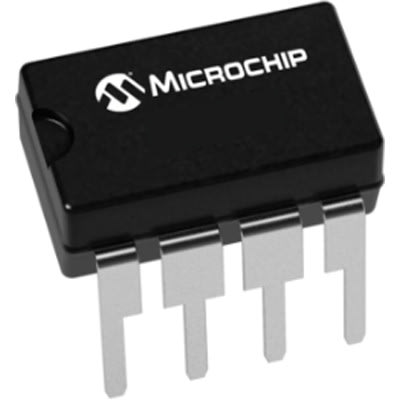

Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 μV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	General Purpose
Common Mode Rejection Ratio	90 dB
Density Noise	8.7 nV/vHz
Dimensions	0.195\” (5mm) X 0.00 in W X 0.40 in L
Dimensions	0.400 x 0.280 x 0.195 in
Gain Bandwidth	10 MHz
Harmonic Distortion	0.00053 %
Height	0.195" (5mm)
Input Bias Current	150 pA
Input Offset Current	±1 pA
Input Offset Voltage	500 μV
Input Voltage	2.2 to 2.8
Input Voltage Range	-0.3 to 5.8 V
Length	0.4 in
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Through Hole
Noise Voltage	8.7 nV/sqrt Hz
Number of Amplifiers	Dual
Number of Channels per Chip	2
Number of Circuits	2
Number of Pins	8
Output Current	22 mA
Output Type	Rail to Rail
Package Type	PDIP
Product Header	Rail-to-Rail Input/Output Operational Amplifier
Slew Rate	7 V/μs
Supply Current	+/-30 mA
Temperature Operating Range	-40 to +85 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	2.5 to 5.5 V
Voltage, Input, High Level	5.8 V
Voltage, Input, Low Level	-0.3 V
Voltage, Output, High Level	2480 mV
Voltage, Output, Low Level	2480 mV
Width	0 in
