Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 µV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	High Precision ; Low Offset Voltage ; Power ; Rail-To-Rail ; Single Supply
Bandwidth	10 kHz
Common Mode Rejection Ratio	95 dB
Gain Bandwidth	10 kHz
Input Bias Current	2000 pA
Input Offset Current	+/-1 pA
Input Offset Voltage	150 µV
Input Voltage	1.5 to 2.1
Noise Voltage	165 nV/sqrt Hz
Number of Amplifiers	Dual
Number of Circuits	2
Output Current	30 mA

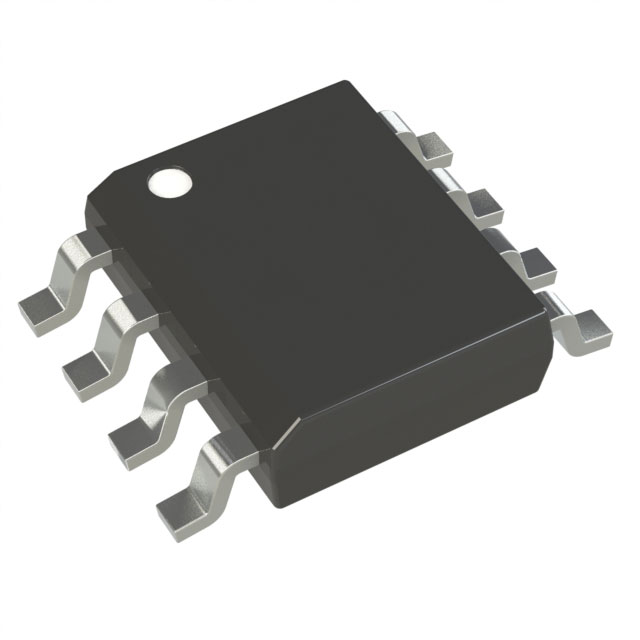

Package Type	SOIC-8
Product Header	High Precision Operation Amplifier
Slew Rate	4 V/ms
Supply Current	+/-30 mA
Supply Voltage	1.8-5.5 V
Temperature Operating Range	-40 to +125 °C
Voltage, Output, High Level	1790 mV
Voltage, Output, Low Level	1790 mV
