| Amplifier Type | Low Power |
| Density Noise | 170 nV/vHz |
| Dimensions | 0.037\” (0.95mm) X 0.00 in W X 0.12 in L |
| Dimensions | 3.00 x 3.00 x 0.95 mm |
| Gain Bandwidth | 14 kHz |
| Height | 0.037" (0.95mm) |
| Input Bias Current | 1 pA |
| Input Offset Current | Maximum of 100 pA |
| Input Offset Voltage | 3 mV |
| Input Voltage Range | -0.3 to 5.8 V |
| Length | 0.118 in |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 2 |
| Number of Pins | 8 |
| Output Current | 20 mA |
| Output Type | Rail to Rail |
| Package Type | MSOP |
| Slew Rate | 3 V/ms |
| Temperature Operating Range | -40 to +85 °C |
| Type of Power Supply | Single Output |
| Typical Single Supply Voltage | 1.4 to 6 V |
| Voltage, Input, High Level | 5.8 V |
| Voltage, Input, Low Level | -0.3 V |
| Width | 0 in |

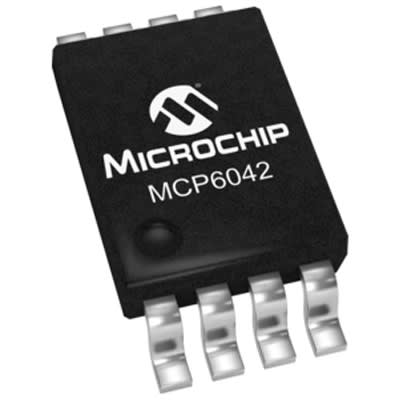

MCP6042-I/MS Datasheet
