Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 µV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	General Purpose
Density Noise	20 nV/vHz
Dimensions	0.195\” (5mm) X 0.00 in W X 0.40 in L
Dimensions	0.400 x 0.280 x 0.195 in
Gain Bandwidth	2 MHz
Height	0.195" (5mm)
Input Bias Current	5 nA
Input Offset Current	+/-1 pA
Input Offset Voltage	3 mV
Input Voltage Range	-0.30 to 5.80 V
Length	0.4 in
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C

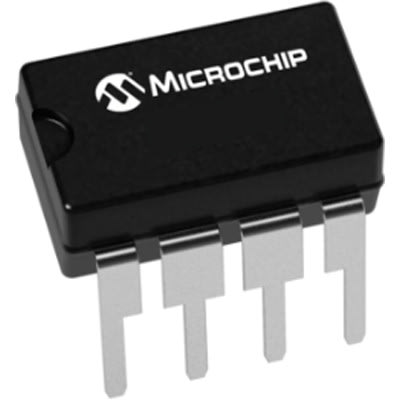

Mounting Type	Through Hole
Number of Channels per Chip	1
Number of Circuits	1
Number of Pins	8
Output Current	25 mA
Output Type	Rail to Rail
Package Type	PDIP
Slew Rate	0.9 V/µs
Temperature Operating Range	-40 to +125 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	2 to 6 V
Voltage, Input, High Level	5.80 V
Voltage, Input, Low Level	-0.3 V
Width	0 in
