Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 µV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	Precision
Density Noise	28 nV/vHz
Dimensions	0.049\” (1.25mm) X 0.00 in W X 0.34 in L
Dimensions	8.65 x 3.90 x 1.25 ; Minimum mm
Gain Bandwidth	1 MHz
Height	0.049" (1.25mm) (Max.)
Input Bias Current	100 pA
Input Offset Current	+/-1 pA
Input Offset Voltage	4.5 mV
Input Voltage Range	-0.3 to 6.3 V
Length	0.34 in
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C

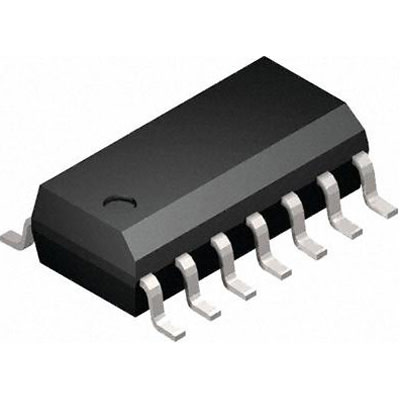

Mounting Type	Surface Mount
Number of Channels per Chip	4
Number of Circuits	4
Number of Pins	14
Output Current	15 mA
Output Type	Rail to Rail
Package Type	SOIC
Slew Rate	0.5 V/µs
Temperature Operating Range	-40 to +125 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	1.8 to 6 V
Voltage, Input, High Level	6.3 V
Voltage, Input, Low Level	-0.3 V
Width	0 in
