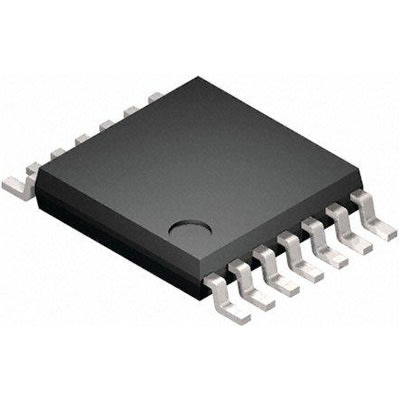

MCP6441/6442/6444 Operational Amplifiers
| Amplifier Type | Low Power |
| Density Noise | 190 nV/vHz |
| Dimensions | 0.041\” (1.05mm) X 0.00 in W X 0.20 in L |
| Dimensions | 5.10 x 4.50 x 1.05 mm |
| Gain Bandwidth | 9 kHz |
| Height | 0.041" (1.05mm) |
| Input Bias Current | 400 pA |
| Input Offset Current | +/-1 pA |
| Input Offset Voltage | 4.5 mV |
| Input Voltage Range | -0.3 to 6.3 V |
| Length | 0.2 in |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 4 |
| Number of Pins | 14 |
| Output Current | 22 mA |
| Output Type | Rail to Rail |
| Package Type | TSSOP |
| Slew Rate | 3 V/ms |
| Temperature Operating Range | -40 to +125 °C |
| Type of Power Supply | Single Output |
| Typical Single Supply Voltage | 1.4 to 6 V |
| Voltage, Input, High Level | 6.3 V |
| Voltage, Input, Low Level | -0.3 V |
| Width | 0 in |
MCP6444-E/ST Datasheet
