| Amplifier Type | General Purpose |
| Density Noise | 19 nV/vHz |
| Dimensions | 0.049\” (1.25mm) X 0.00 in W X 0.19 in L |
| Dimensions | 4.90 x 3.90 x 1.25 ; Minimum mm |
| Gain Bandwidth | 2 MHz |
| Height | 0.049" (1.25mm) (Max.) |
| Input Bias Current | 2000 pA |
| Input Offset Current | ±1 pA |
| Input Offset Voltage | 4 mV |
| Input Voltage Range | -0.3 to 5.3 V |
| Length | 0.192 in |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of Channels per Chip | 2 |
| Number of Pins | 8 |
| Output Current | 25 mA |
| Output Type | Rail to Rail |
| Package Type | SOIC |
| Slew Rate | 0.9 V/μs |
| Temperature Operating Range | -40 to +125 °C |
| Type of Power Supply | Single Output |
| Typical Single Supply Voltage | 2 to 6 V |
| Voltage, Input, High Level | 5.3 V |
| Voltage, Input, Low Level | -0.3 V |
| Width | 0 in |

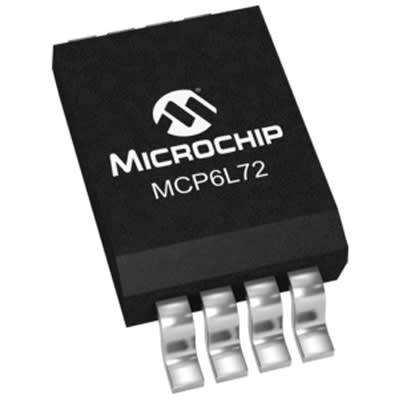

MCP6L72T-E/SN Datasheet
