Operational Amplifiers include single, dual or quad amplifiers in space-saving packages. These devices operate down to 1.8 V and feature rail-to-rail inputs and outputs for improved system performance and low current consumption for extended battery life (600 nA for MCP604X and 614X families). These products offer low offset (VOS 150 µV), low bias current, high speed operation (10 MHz), high open-loop gain and other options for the embedded system designer.

Amplifier Type	Precision
Common Mode Rejection Ratio	106 dB
Density Noise	82 nV/vHz
Dimensions	0.049\” (1.25mm) X 0.00 in W X 0.19 in L
Dimensions	4.90 x 3.90 x 1.25 ; Minimum mm
Gain Bandwidth	1.3 MHz
Height	0.049" (1.25mm) (Max.)
Input Bias Current	6 pA
Input Offset Current	-85 pA
Input Offset Voltage	3 µV
Input Voltage	1.5 to 2.1
Input Voltage Range	-0.20 to 5.70 V
Length	0.192 in
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Mounting Type	Surface Mount
Noise Voltage	52 nV/sqrt Hz
Number of Amplifiers	Single
Number of Channels per Chip	1
Number of Circuits	1
Number of Pins	8
Output Current	22 mA
Output Type	Rail to Rail

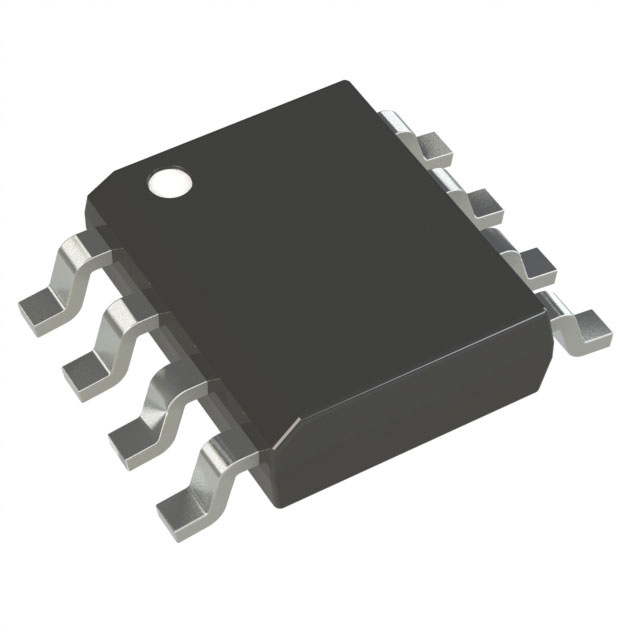

Package Type	SOIC
Product Header	Auto-Zeroed Operational Amplifier
Slew Rate	0.5 V/µs
Supply Current	+/-30 mA
Temperature Operating Range	-40 to +125 °C
Type of Power Supply	Single Output
Typical Single Supply Voltage	1.8 to 5.5 V
Voltage, Input, High Level	5.7 V
Voltage, Input, Low Level	-0.2 V
Voltage, Output, High Level	1785 mV
Voltage, Output, Low Level	1785 mV
Width	0 in
