PGA2311PA Overview

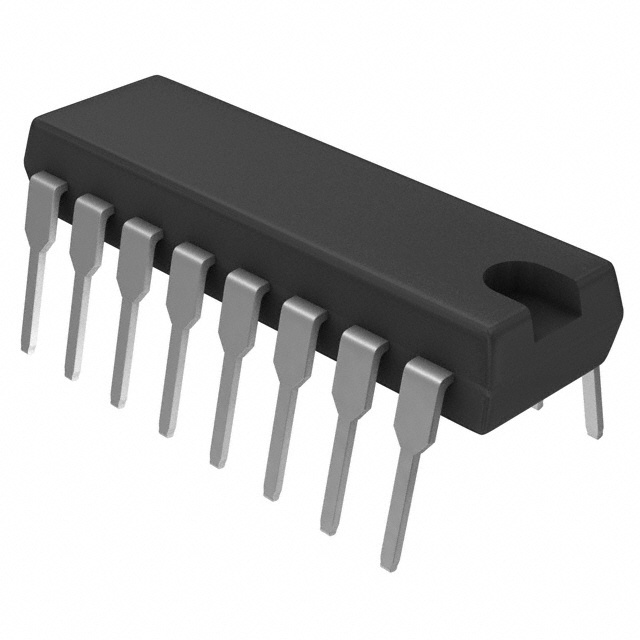

In addition, the book comes with a case study as well. It is recommended that you mount it in a Through Hole mounting type. Case 16-DIP (0.300, 7.62mm) contains it. There are 2 channels on the device. The Volume Control functions in this part are included for your reference. There is a Automotive Audio, Musical Instruments, Professional Audio version of the device. There is a supply of votage within ±4.75V~5.25V days of ordering. With this device, you can operate the temperature within a range of -40°C~85°C TA. 16 terminations are present on the chip. By searching for PGA2311 family parts, similar parts can be found. For more information, please refer to the device specs: 31.5dB ~ -95.5dB. 16 pins are available on the chip. As seen in the picture, Through Hole is mounting it. The chip conducts when it is supplied with 5V-voltage. 1 bands are present on it. It is important to keep the voltage gain at -95.5 dB.
PGA2311PA Features
With 16-DIP (0.300, 7.62mm) channels
operate temperature at the range of -40°C~85°C TA

PGA2311PA Applications
There are a lot of Texas Instruments
PGA2311PA Audio Special Purpose applications.

Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors

Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	16-DIP (0.300, 7.62mm)
Number of Pins	16
Weight	1.053808g
Operating Temperature	-40°C~85°C TA
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Automotive Audio, Musical Instruments, Professional Audio
Voltage - Supply	±4.75V~5.25V
Terminal Position	DUAL
Base Part Number	PGA2311
Function	Volume Control
Operating Supply Voltage	5V
Number of Channels	2
Interface	SPI
Nominal Supply Current	500μA
Input Offset Voltage (Vos)	250μV
Gain Bandwidth Product	10MHz
Specifications	31.5dB ~ -95.5dB
Gain	-95.5 dB
Number of Bands	1
Channel Separation	130 dB
Height	5.08mm
Length	19.3mm
Width	6.35mm
Thickness	3.9mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Voltage - Supply	±4.75V ~ 5.25V
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
