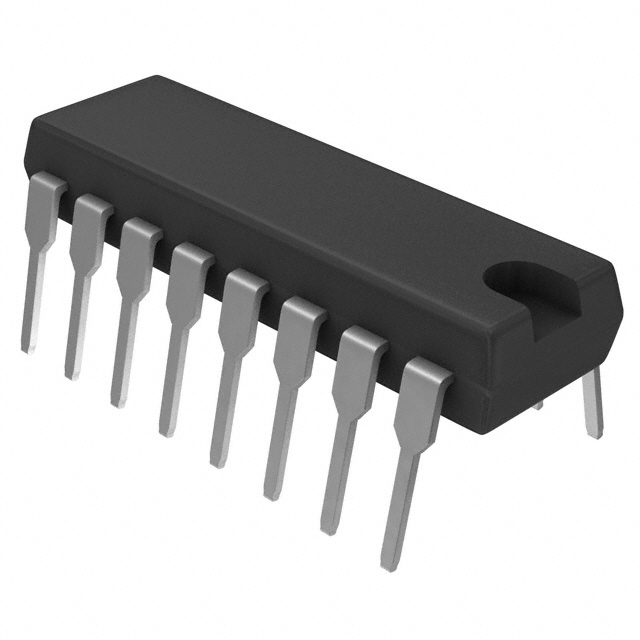

SA571NG Overview
In addition, the book comes with a case study as well. It is recommended that you mount it in a Through Hole mounting type. Case 16-DIP (0.300, 7.62mm) contains it. There are 2 channels on the device. The Compandor functions in this part are included for your reference. There is a Consumer Audio, Telecommunication Systems version of the device. There is a supply of votage within 6V~18V days of ordering. With this device, you can operate the temperature within a range of -40°C~85°C TA. 16 terminations are present on the chip. By searching for SA571 family parts, similar parts can be found. 16 pins are available on the chip. There should be no voltage below 6V on the supply line of this component (Vsup). The voltage it can produce is 15V volts. When Vsup reaches 18V, the maximum supply voltage (Vsup) is reached. 15V is its maximum supply voltage. It employs an analog IC named COMPANDER. It is important to keep the voltage gain at 110 dB. It takes 0.02MHz bandwidth to transfer data.
SA571NG Features
With 16-DIP (0.300, 7.62mm) channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 15V volts

SA571NG Applications
There are a lot of ON Semiconductor
SA571NG Audio Special Purpose applications.

Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors

Lifecycle Status	OBSOLETE (Last Updated: 2 days ago)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300, 7.62mm)
Surface Mount	NO
Number of Pins	16
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2005
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	Consumer Audio, Telecommunication Systems
Max Power Dissipation	400mW
Voltage - Supply	6V~18V
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Supply Voltage	15V
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	SA571
Function	Compandor
Supply Voltage-Max (Vsup)	18V
Power Supplies	15V
Supply Voltage-Min (Vsup)	6V
Number of Channels	2
Interface	Analog
Analog IC - Other Type	COMPANDER
Nominal Supply Current	4.2mA
Output Power	400mW
Bandwidth	0.02MHz
Supply Current-Max (Isup)	4.8mA
Gain	110 dB
Height	3.43mm
Length	19.55mm
Width	6.85mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free
Mfr	onsemi
Series	-
Product Status	Obsolete
Voltage - Supply	6V ~ 18V
Operating Temperature	-40°C ~ 85°C (TA)
Specifications	110dB
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
