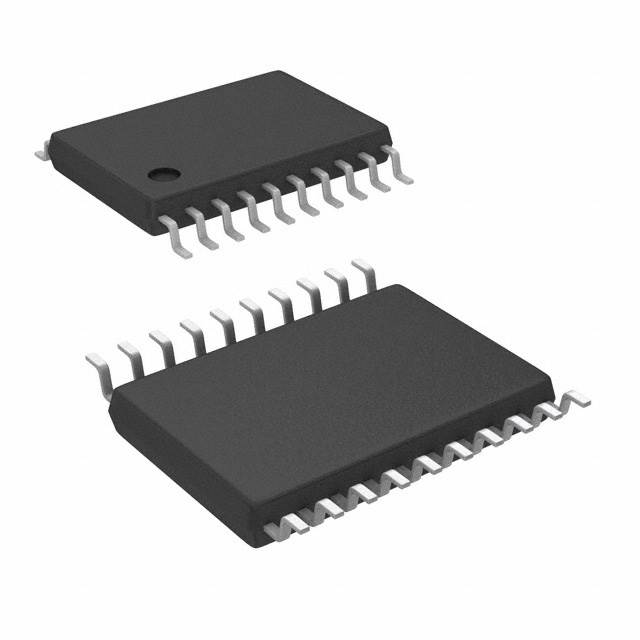

SA575DTBR2G Overview
With Tape & Reel (TR), it comes in a case. A Surface Mount mounting type is recommended for this product. In 20-TSSOP (0.173, 4.40mm Width) case, it is embedded. With 2 channels, the device is equipped. You can refer to Compandor functions in this part. Consumer Audio, Telecommunication Systems is one of the possible applications of the device. Votage within 3V~7V is supplied. The device operates at a temperature in the range -40°C~85°C TA. On the chip, there are 20 terminations. Using the SA575 family as a search term will yield similar parts. On the chip, 20 pins are accessible. This part should have a minimum supply voltage of 3V (Vsup). There is a voltage range of 5V volts that it can produce. Once 7V is reached, the maximal supply voltage (Vsup) is reached. 5V is the maximum supply voltage it can handle. Analog IC COMPANDER is used in this device. 80 dB should remain the voltage gain. The bandwidth available for data transfer is 0.02MHz.
SA575DTBR2G Features
With 20-TSSOP (0.173, 4.40mm Width) channels
operate temperature at the range of -40°C~85°C TA
Supply voltage at 5V volts

SA575DTBR2G Applications
There are a lot of ON Semiconductor
SA575DTBR2G Audio Special Purpose applications.

Consumer electronics
AV/DVD Receiver, AV Amplifier
Car or Mobile Audio System
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers

Lifecycle Status	ACTIVE (Last Updated: 19 hours ago)
Factory Lead Time	36 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	20
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2005
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Applications	Consumer Audio, Telecommunication Systems
Max Power Dissipation	1.344W
Voltage - Supply	3V~7V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.65mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	SA575
Function	Compandor
Supply Voltage-Max (Vsup)	7V
Power Supplies	5V
Supply Voltage-Min (Vsup)	3V
Number of Channels	2
Interface	Analog
Analog IC - Other Type	COMPANDER
Nominal Supply Current	5.5mA
Common Mode Rejection Ratio	60 dB
Halogen Free	Halogen Free
Bandwidth	0.02MHz
Gain	80 dB
Positive Input Voltage-Max	7V
Length	6.5mm
Width	4.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
