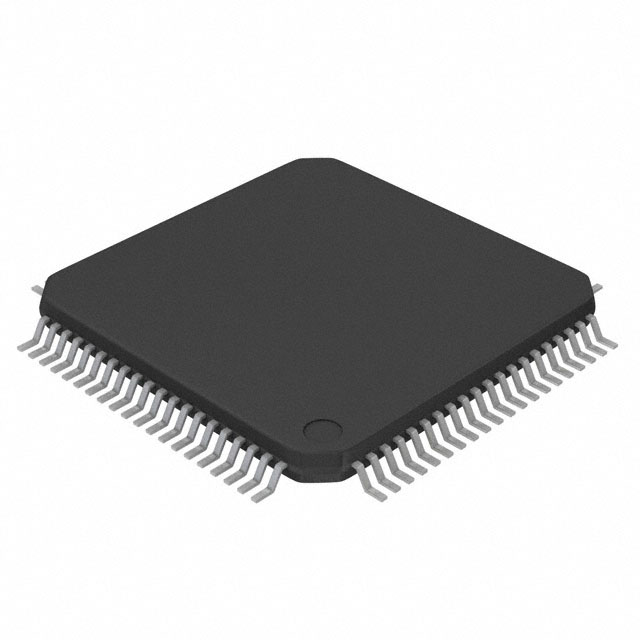

SN74V293-7PZA Overview
FIFO memory chip can be found in the 80-LQFP package.There is a case Tray in which it is packaged.It is possible to store data and applications on the FIFO chips as they have 1.125M 64K x 18 128K x 9 in their memory.It is advisable to regulate the temperature to 0°C~70°C to ensure reliable operation.The mounting type of the FIFO memory is Surface Mount .For operation, it requires a supply voltage of 3.15V~3.45V .The 74V series is represented by this memory logic.35mA is the FIFO's maximum operating supply current.Mounting it Surface Mount is recommended.The 74V293 family of objects contains it.A supply voltage of 3.3V is capable of producing high efficiency.80 terminations are contained in FIFO means.80 pins are used for operation.Set the supply voltage to 3.3V to ensure FIFO's maximum efficiency.This part has a memory type of OTHER FIFO .A frequency of 133MHz is capable of maintaining good accuracy.FIFO memory IC's maximum supply voltage is set to 3.45V .Maintain the supply voltage (Vsup) above 3.15V for normal operation.With the use of 2 circuits, FIFO memory chip provides enhanced flexibility.
SN74V293-7PZA Features
1.125M 64K x 18 128K x 9 memory size
74V series
Best part number of 74V293

SN74V293-7PZA Applications
There are a lot of Texas Instruments
SN74V293-7PZA FIFOs Memory applications.

Switches
Routers
Cameras
Multimedia
TVs
Computers
Disk Controllers
Communications
Networking
Multi-stage synchronizer

Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	80-LQFP
Number of Pins	80
Operating Temperature	0°C~70°C
Packaging	Tray
Series	74V
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	80
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Voltage - Supply	3.15V~3.45V
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Frequency	133MHz
Base Part Number	74V293
Function	Synchronous
Current - Supply (Max)	35mA
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.45V
Supply Voltage-Min (Vsup)	3.15V
Number of Circuits	2
Memory Size	1.125M 64K x 18 128K x 9
Element Configuration	Dual
Nominal Supply Current	35mA
Access Time	5ns
Data Bus Width	18b
Direction	Unidirectional
Organization	64KX18
Output Characteristics	3-STATE
Density	1.1 Mb
Standby Current-Max	0.015A
Parallel/Serial	PARALLEL
Memory IC Type	OTHER FIFO
Bus Directional	Uni-Directional
FWFT Support	Yes
Output Enable	YES
Expansion Type	Depth, Width
Cycle Time	7.5 ns
Height	1.6mm
Length	14mm
Width	14mm
Thickness	1.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
