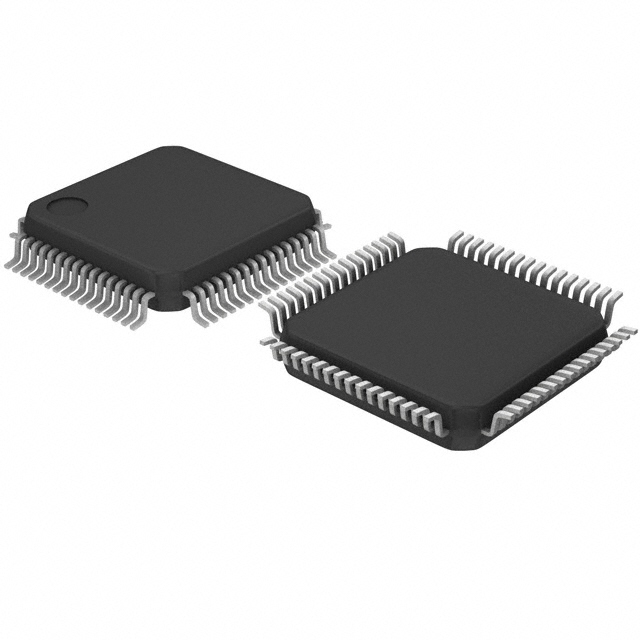

STA309A13TR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. In this case, it is embedded in the 64-LQFP case. This device has a 8 channel configuration. To assist you, this part includes Fully Integrated Processor functions. It is possible to apply the device in the Pre-Amplifier axis. Votage will be supplied within the period of 3V~3.6V. In terms of temperature, this device works within a range of -40°C~125°C TJ. The chip has 64 terminations. If you search for the STA309 family of parts, you will be able to find similar parts. I would like you to refer to the related specifications of the device: Direct Digital Amplification. On the chip, there are 64 pins that can be accessed. Sorting by CONSUMER CIRCUIT can be done based on what type of consumer IC the part contains. Vsup (supply voltage) should not be less than 3V when using this part. It can produce voltage at a voltage level of 3.3V volts. In this case, Vsup reaches its maximal value at 3.6V. Surface Mount is the one who mounts it. A DDX™ series electrical component is represented by this.
STA309A13TR Features
With 64-LQFP channels
operate temperature at the range of -40°C~125°C TJ
consumer IC type: CONSUMER CIRCUIT

STA309A13TR Applications
There are a lot of STMicroelectronics
STA309A13TR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Lifecycle Status	ACTIVE (Last Updated: 6 months ago)
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-LQFP
Number of Pins	64
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
Series	DDX™
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
ECCN Code	EAR99
Applications	Pre-Amplifier
Voltage - Supply	3V~3.6V
Terminal Position	QUAD
Terminal Form	GULL WING
Terminal Pitch	0.5mm
Base Part Number	STA309
Function	Fully Integrated Processor
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Number of Channels	8
Interface	I2C, I2S
Specifications	Direct Digital Amplification
Consumer IC Type	CONSUMER CIRCUIT
Length	10mm
Height Seated (Max)	1.6mm
Width	10mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	STMicroelectronics
Product Status	Active
Interface	I²C, I²S
Voltage - Supply	3V ~ 3.6V
Operating Temperature	-40°C ~ 125°C (TJ)
Supplier Device Package	64-TQFP (10x10)
