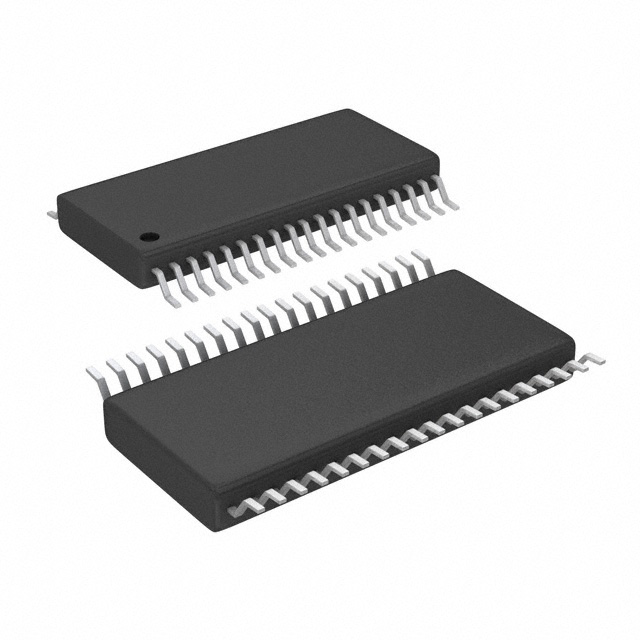

TAS3103DBTR Overview
With the book, you will also receive a case study. In terms of mounting type, the recommended type is Surface Mount. There is a 38-TFSOP (0.173, 4.40mm Width) case embedded in it as well. This device has a 3 channel configuration. To assist you, this part includes Audio Signal Processor functions. It is possible to apply the device in the Digital Audio Interfacing axis. Votage will be supplied within the period of 3V~3.6V. In terms of temperature, this device works within a range of 0°C~70°C TA. The chip has 38 terminations. If you search for the TAS3103 family of parts, you will be able to find similar parts. On the chip, there are 38 pins that can be accessed. Surface Mount is the one who mounts it. A supply voltage of 3.3V can be applied to it. There are a total of DIGITAL SIGNAL PROCESSOR, OTHER types of uP/uC/peripheral ICs in this device as a whole.
TAS3103DBTR Features
With 38-TFSOP (0.173, 4.40mm Width) channels
operate temperature at the range of 0°C~70°C TA
Supply voltage at 3.3V volts

TAS3103DBTR Applications
There are a lot of Texas Instruments
TAS3103DBTR Audio Special Purpose applications.

Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
Dynamic Range Processors
Digital Effects Processors

Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	38-TFSOP (0.173, 4.40mm Width)
Number of Pins	38
Weight	120.003531mg
Operating Temperature	0°C~70°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	38
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	Digital Audio Interfacing
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Base Part Number	TAS3103
Function	Audio Signal Processor
Number of Channels	3
Interface	I2C
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Clock Frequency	20MHz
Boundary Scan	NO
Low Power Mode	YES
Format	FIXED POINT
Barrel Shifter	NO
Internal Bus Architecture	MULTIPLE
Height	1.2mm
Length	9.7mm
Width	4.4mm
Thickness	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Mfr	Texas Instruments
Series	-
Product Status	Active
Interface	I²C
Voltage - Supply	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C (TA)
Specifications	-
Package / Case	38-TFSOP (0.173", 4.40mm Width)
Supplier Device Package	38-TSSOP
