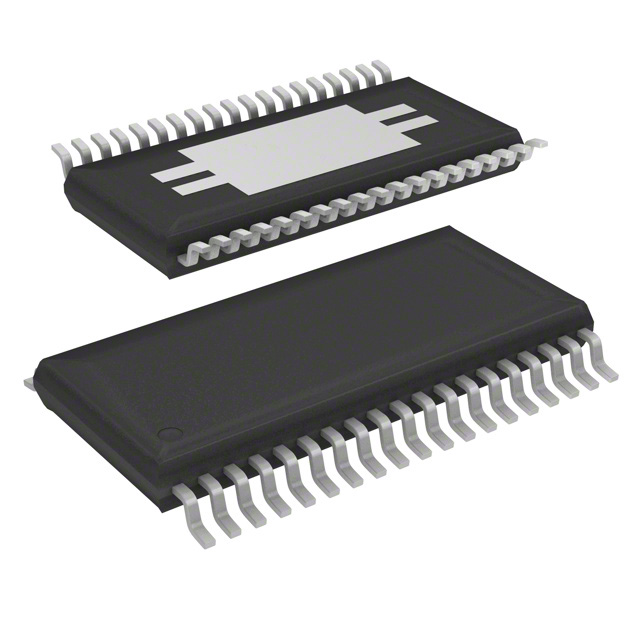

TAS3108DCPR OverviewAdditionally, there is a case included with the book as well. The mounting type recommended by the manufacturer is Surface Mount. A 38-TFSOP (0.173, 4.40mm Width) Exposed Pad case contains it. A 4 channel is present on the device. For your reference, this part contains Audio Signal Processor functions. Automotive Audio, Consumer Audio can be used with the device. We supply it within 3V~3.6V. Using 0°C~70°C TA as a temperature range, this device operates. It has 38 terminations. A search for parts belonging to the TAS3108 family will yield similar results. An accessible 38 pin can be found on the chip. The mount is made by Surface Mount. This electrical component belongs to the Automotive, AEC-Q100 series. The chip conducts in a 3.3V-voltage supply. This device can handle a voltage of 3.3V as a supply voltage. In IC chips, 48 bits are present. In total, this device has DIGITAL SIGNAL PROCESSOR, OTHER types of ICs - microprocessors, microcontrollers, and peripherals. At a frequency of 135MHz, it can operate efficiently.
TAS3108DCPR FeaturesWith 38-TFSOP (0.173, 4.40mm Width) Exposed Pad channels
operate temperature at the range of 0°C~70°C TA
Supply voltage at 3.3V volts
with 48 bits
TAS3108DCPR ApplicationsThere are a lot of Texas Instruments
TAS3108DCPR Audio Special Purpose applications.
Digital Television
Musical Instruments
Recording Systems
High-End Audio/Sound Card for PC
Replacement of DIR1703
Other Applications Requiring S/PDIF Receiver
Audio Differential Line Drivers
Audio Mix Consoles
Distribution Amplifiers
Graphic and P arametric Equalizers
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Factory Lead Time | 6 Weeks |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173, 4.40mm Width) Exposed Pad |
| Number of Pins | 38 |
| Weight | 130.010913mg |
| Operating Temperature | 0°C~70°C TA |
| Packaging | Tape & Reel (TR) |
| Series | Automotive, AEC-Q100 |
| JESD-609 Code | e4 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Number of Terminations | 38 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Applications | Automotive Audio, Consumer Audio |
| Voltage - Supply | 3V~3.6V |
| Terminal Position | DUAL |
| Terminal Form | GULL WING |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 3.3V |
| Terminal Pitch | 0.5mm |
| Frequency | 135MHz |
| Base Part Number | TAS3108 |
| Function | Audio Signal Processor |
| Operating Supply Voltage | 3.3V |
| Number of Channels | 4 |
| Interface | I2C |
| RAM Size | 14kB |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
| Number of Bits | 48 |
| Data Bus Width | 32b |
| Boundary Scan | NO |
| Low Power Mode | YES |
| Format | FIXED POINT |
| Integrated Cache | NO |
| RAM (words) | 3072 |
| Barrel Shifter | NO |
| Internal Bus Architecture | MULTIPLE |
| Height | 1.2mm |
| Length | 9.7mm |
| Width | 4.4mm |
| Thickness | 1.15mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
| Mfr | Texas Instruments |
| Series | - |
| Product Status | Active |
| Applications | Audio |
| Interface | I²C |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Specifications | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 38-PowerTFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 38-HTSSOP |
TAS3108DCPR Datasheet
